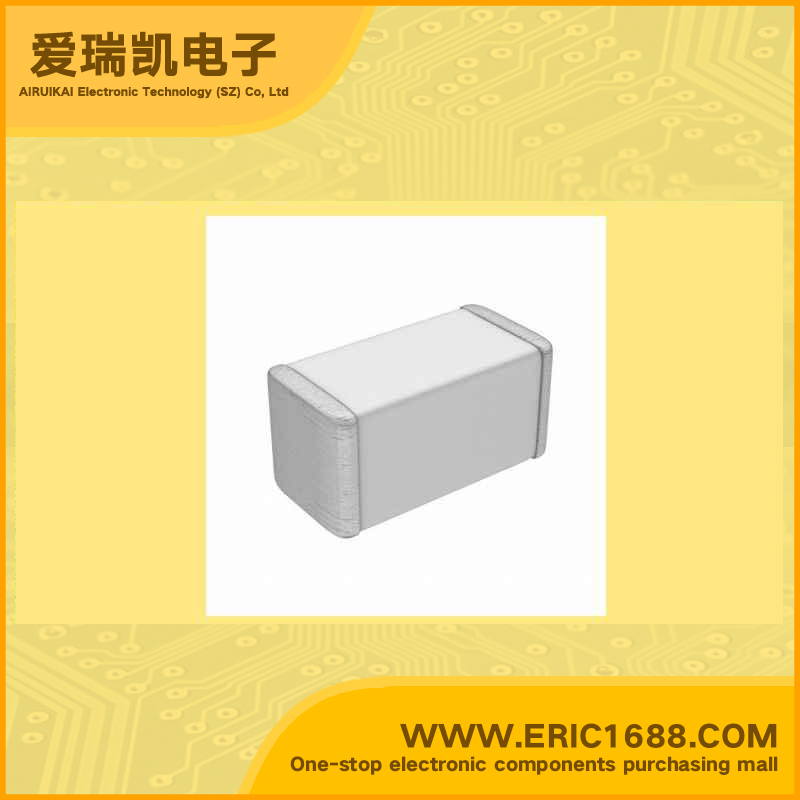

low power inductor MLK1005S6N8DT00 6.8nH 0402-6N8
| 电感值 Inductance | 6.8nH |
| 误差 Tolerance | ±0.3nH |
| 额定电流 Current Rating | 400mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 7 @ 100MHz |
| 自振谐频率SRF Frequency - Self Resonant | 5.5GHz |
| DC电阻DCR DC Resistance (DCR) | 0.35Ω/Ohm |
| 屏蔽 Shielding | 无屏蔽 Unshielded |
| Description & Applications | MLK Series MLK1005 FEATURES • Inductance values are supported from 1 to 100nH. • With the adoption of a giga-spiral laminated structure, self-resonant frequency higher than that of the MLG structure can be obtained, while the decrease of Q in the GHz band is limited. • Advanced monolithic structure is formed using a multilayering and sintering process with ceramic and conductive materials for high-frequency. • There is no directivity. • The products contain no lead and also support lead-free soldering. • It is a product conforming to RoHS directive. |
| 描述与应用 | MLK系列MLK1005 特点 电感值从1到100nH。 产品中不含铅，支持无铅焊接。 它是一个符合RoHS指令产品。 |
