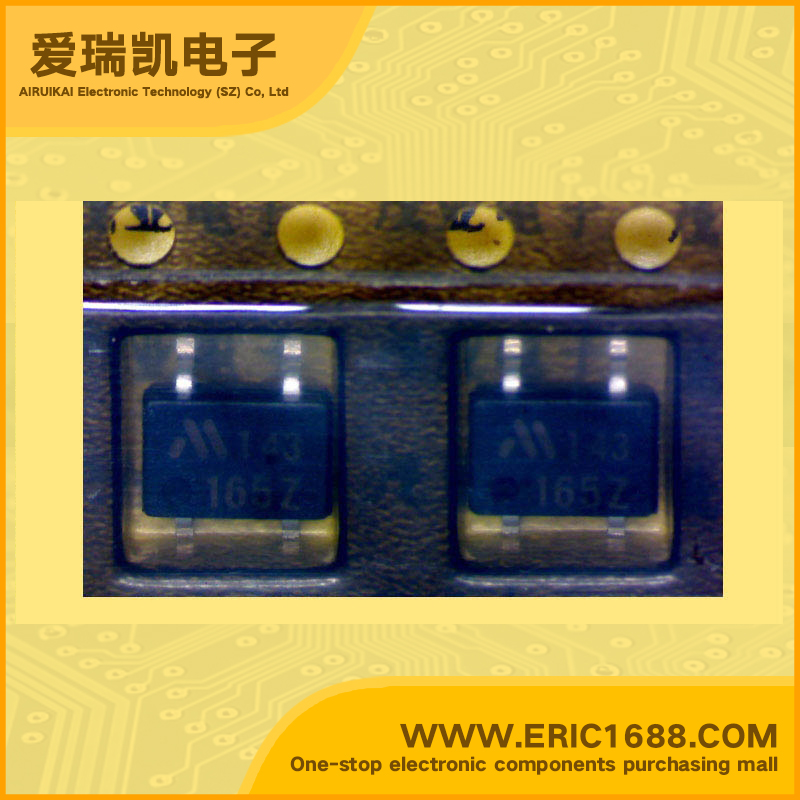

MM1165ZMR LDO Voltage Regulator 3.3V 200mV/0.2V With Enable Pin MMP-4A marking 165Z Short-Circuit Protection Over-Temperature Protection
电路数量 Number of Regulators | 1 |
输入电压VIN Voltage - Input | -0.3~10V |
输出电压VOUT Voltage - Output | 3.3V |
输出电流Io Current - Output | 40mA |
最大压降VDO Voltage - Dropout | 200mV/0.2V |
带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
最大耗散功率Pd Power dissipation | 200mW/0.2W |
Description & Applications | Ultra-Low Power Consumption Low-Saturation Three-Pin Regulators with On/Off Pin ;•Input/output voltage difference 0.2V typ. (IO=40mA) •No-load input current 13µA typ. •Maximum reactive current at low input voltages 15µA typ. (no-load) •Maximum output current 100mA max. •Temperature coefficient of output voltage ±0.01%/°C typ. |
描述与应用 | 超低功耗低饱和度的三针稳压器ON / OFF引脚;•输入/输出电压差0.2V(典型值)(IO=40毫安) •无负载输入电流13μA(典型值) 最大无功电流15μA(典型值)低输入电压(空载) •最大输出电流最大100mA。 输出电压温度系数±0.01%/°C典型值 |
