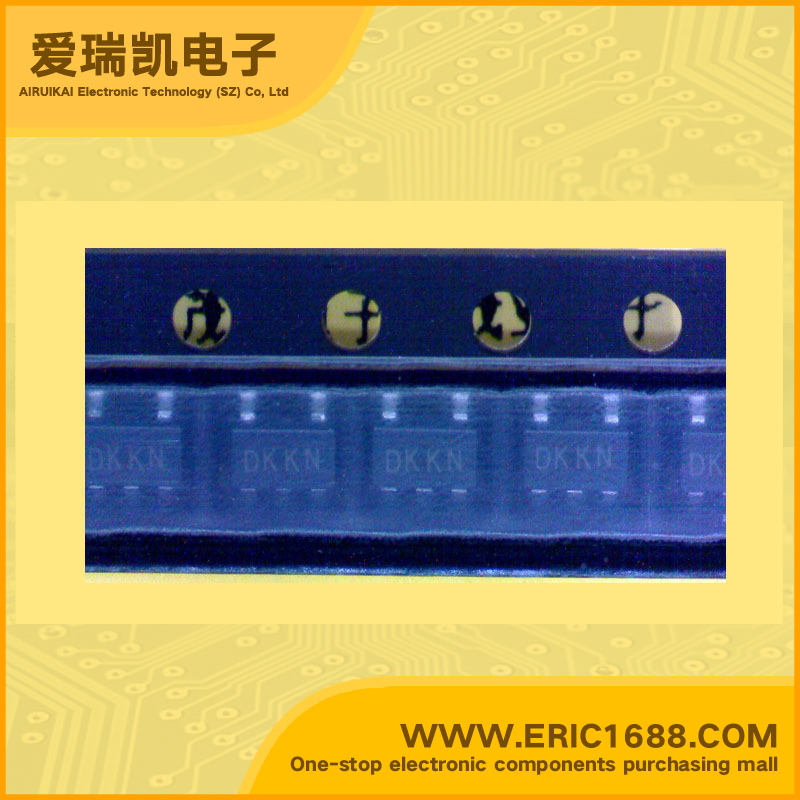

MM1385KNRE LDO Voltage Regulator 2.8V 100mV/0.1V SOT-153/SOT-25A/SOT23-5 marking DKKL Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 1.8~12V |
| 输出电压VOUT Voltage - Output | 2.8V |
| 输出电流Io Current - Output | 50mA |
| 最大压降VDO Voltage - Dropout | 100mV/0.1V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 150mW/0.15W |
| Description & Applications | Microminiature Low-Power Consumption Low-Saturation Regulator ;• No-load input current 95µA typ. •I/O voltage difference 0.1V typ.(Io=50mA) • Ripple rejection ratio 70dB typ. •Output current 150mA max. •Output noise voltage 35µVrms typ. •Output on/off control High ON, Low OFF |
| 描述与应用 | 超小型低功耗低饱和稳压器;•无负载输入电流95μA（典型值） •I / O电压差0.1V（典型值）（IO=50毫安） 纹波抑制比70dB的典型 •输出电流最大150mA。 •输出噪声电压典型35μVrms •输出开/关控制高开，关低 |
