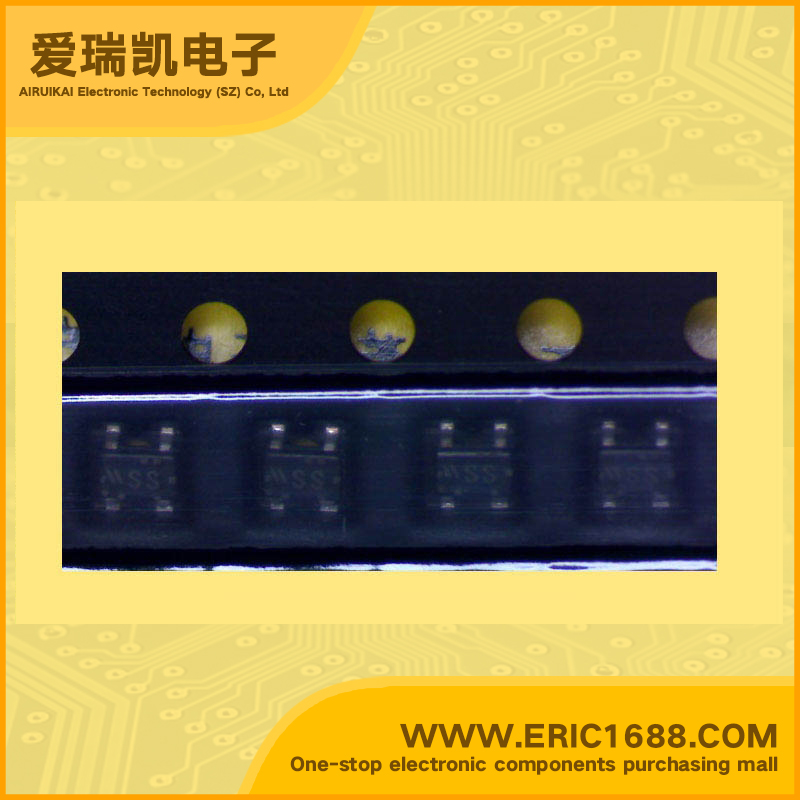

MM3033CURE Voltage Regulator 3.2V SOT-343/SC-82 marking SS Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
2~8V
输出电压VOUT
Voltage - Output
3.2V
输出电流Io
Current - Output
80mA
最大压降VDO
Voltage - Dropout
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
150mW/0.15W
Description & ApplicationsCMOS Regulator ;•Input Voltage Range 2~8V • Output Voltage Range 1.7~5.5V •Output Voltage accuracy VOUT±2% • Maximum Output Current 80mA • Supply Current 1.5µA typ. (no-Load Input Current) 0.1µA Typ. (OFF) •Output Capacitor 1uF • Dropout Voltage 30mV typ./50mV max.(IO=1mA) • Output Short-Circuit Current 60mA • Line Regulation 0.05%/V (IO=1mA) • Load Regulation 30mV typ./50mV max. (IO=1~80mA)
描述与应用CMOS稳压器;•输入电压范围2〜8V •输出电压范围1.7〜5.5V •输出电压VOUT精度±2% •最大输出电流80mA •电源电流1.5μA(典型值)(无负载输入电流) 类型0.1μA。 (OFF) •输出电容1uF的 •漏失电压30mV的typ./50mV最大(IO=1毫安) •输出短路电流60mA 线路调整0:05%/ V(IO=1毫安) •负载调整30mV的最大typ./50mV。 (IO= 1〜80毫安)
