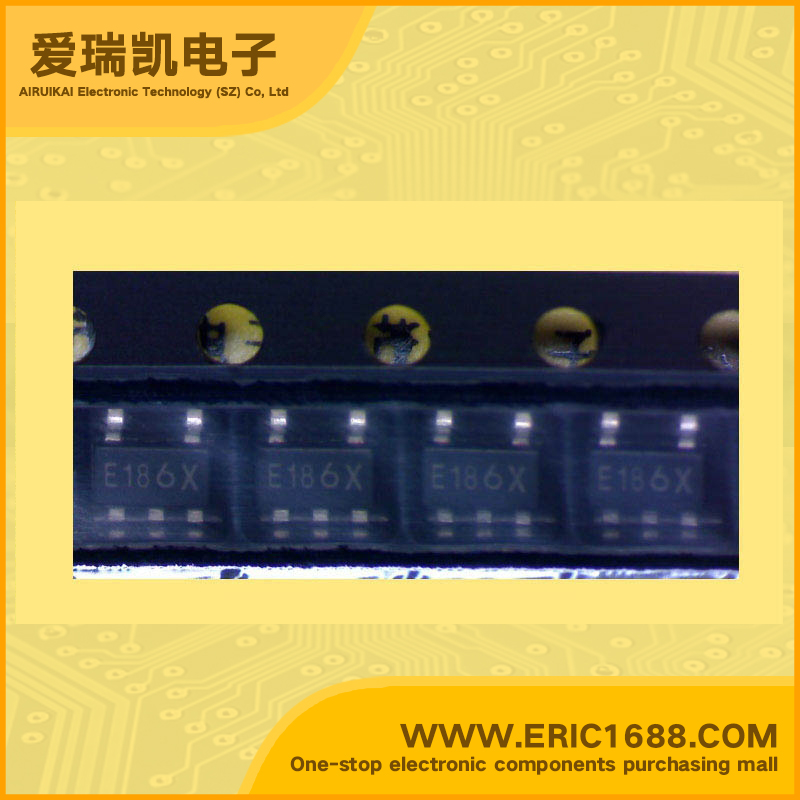

MM3271JNRE LDO Voltage Regulator 1.8V 120mV/0.12V SOT-153/SOT-25A/SOT23-5 marking E18 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
1.2~6V
输出电压VOUT
Voltage - Output
1.8V
输出电流Io
Current - Output
1mA
最大压降VDO
Voltage - Dropout
120mV/0.12V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
Description & ApplicationsCMOS Regulator ;•Input Voltage Range 1.2~6V •Output Voltage Range 0.8~5.0V • Output Voltage accuracy VOUT±2% • Maximum Output Current 150mA •Supply Current 0.8µA typ. (no Load Input Current) 0.1µA typ. (OFF) •Output Capacitor 0.1µF •Dropout Voltage 30mV Typ (Io=1mA) • Chip enable function High: ON, Low: OFF • Output Short-Circuit Current 60mA
描述与应用CMOS稳压器;•输入电压范围1.2〜6V •输出电压范围0.8〜5.0V •输出电压VOUT精度±2% •最大输出电流150mA •0.8μA典型电源电流(无负载输入电流) 0.1μA(典型值)(OFF) •输出电容0.1μF •漏失电压30mV的类型(IO=1毫安) •芯片使能功能:开,低:关 •输出短路电流60mA
