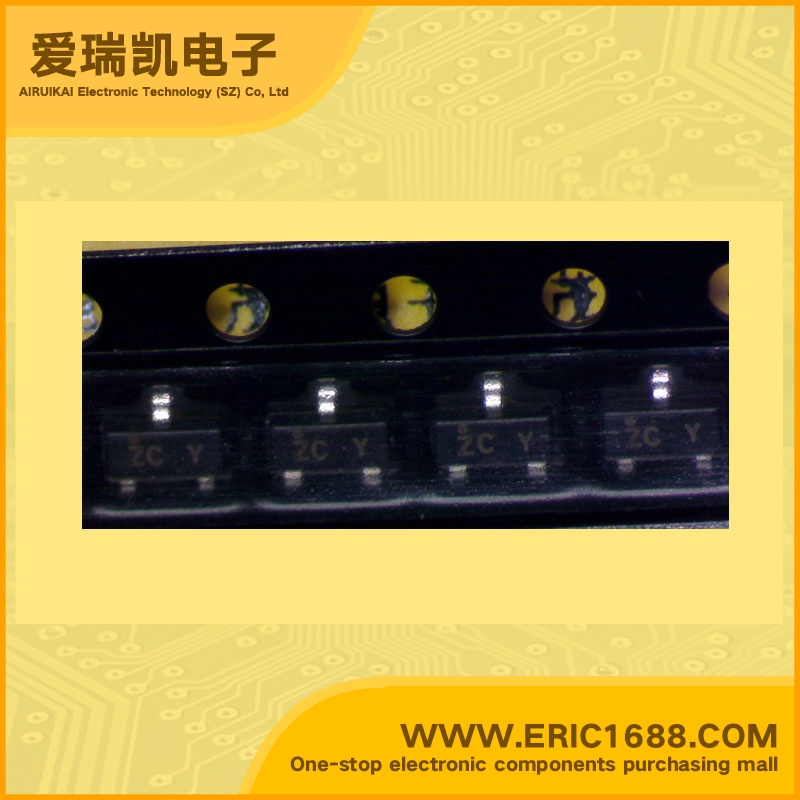

MMBT4124 NPN Transistors(BJT) 30V 200mA/0.2A 300Mhz 120~360 300mV/0.3V SOT-23/SC-59 marking ZC general amplifier and switch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 25V |
| 集电极连续输出电流IC Collector Current(IC) | 200mA/0.2A |
| 截止频率fT Transtion Frequency(fT) | 300Mhz |
| 直流电流增益hFE DC Current Gain(hFE) | 120~360 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率Pc Power Dissipation | 350mW/0.35W |
| Description & Applications | This device is designed as a general purpose amplifier and switch. The useful dynamic range extends to 100 mA as a switch and to 100 MHz as an amplifier. |
| 描述与应用 | 这个装置是专为通用放大器和开关。 有用的动态范围扩展到100毫安作为开关 作为一个放大器100兆赫。 |
