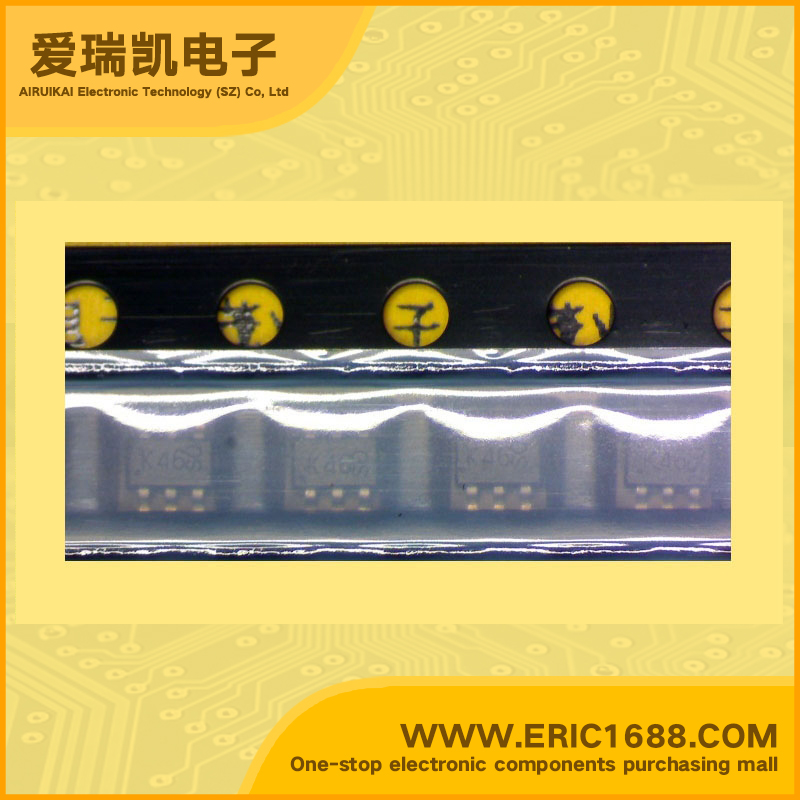

MMDT3946-7-F NPN+PNP Complex Bipolar Transistor 60V/-40V 200mA/-200mA HEF=100~300 SOT-363 marking K46 switch and digital circuit application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 60V/-40V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 40V/-40V |
| 集电极连续输出电流IC Collector Current(IC) | 200mA/-200mA |
| 截止频率fT Transtion Frequency(fT) | 300MHz/250MHZ |
| 直流电流增益hFE DC Current Gain(hFE) | 100~300/100~300 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 300mV/-300mV |
| 耗散功率Pc Power Dissipation | 200mW |
| Description & Applications | Features • COMPLEMENTARY NPN / PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR • Complementary Pair • One 3904-Type NPN, One 3906-Type PNP • Epitaxial Planar Die Construction • Ideal for Low Power Amplification and Switching • Ultra-Small Surface Mount Package • Lead Free/RoHS Compliant (Note 3) |
| 描述与应用 | 特点 •互补配对互补NPN/ PNP小信号表面贴装晶体管？ •一个NPN，一个3904型3906型PNP •外延平面电路小片建设 •适用于低功率放大和开关 •超小型表面贴装封装？ •无铅/ RoHS规定（注3） |
