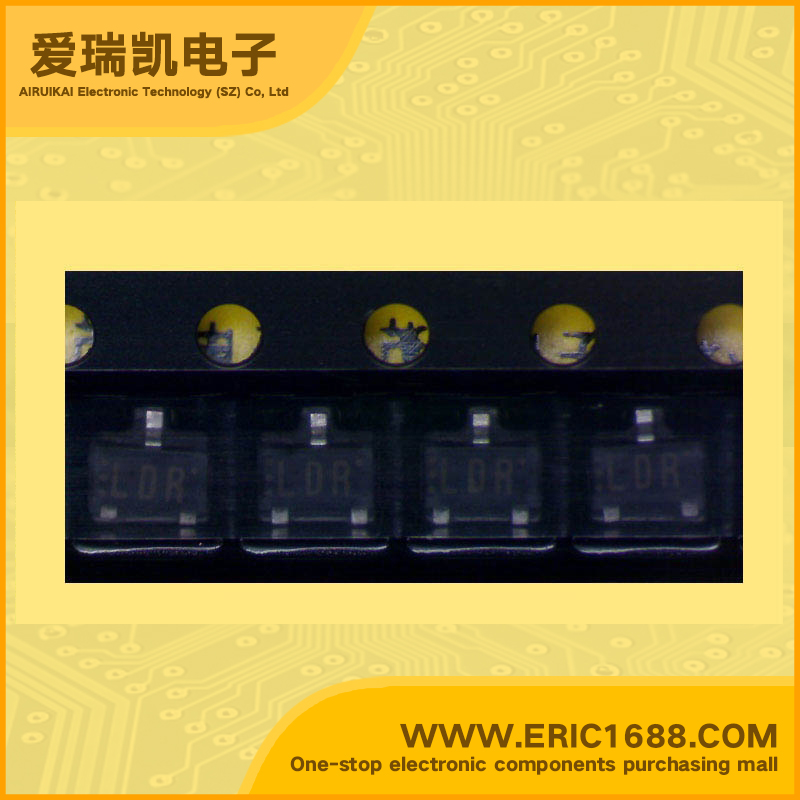

MN13821-R Voltage Supervisor 4.15V SOT-23 marking LDR CMOS LSI voltage detecting
| 受检测电压数 Number of Voltages Monitored | 1 |
| 检测电压/复位阈值电压VDET Voltage - Threshold | 4.15V |
| 工作电压VIN Voltage - Supply | 7V |
| 高/低有效复位 Reset | 低 Active Low |
| 输出类型 Output Type | open drain |
| 看门狗 Watchdog | 无 No |
| 功耗Pd Power Dissipation | 320mW/0.32W |
| Description & Applications | •CMOS LSIs for Voltage Detection •Three-pin element requiring no adjustment Wide selection of detection ranks (17 ranks between 2.0 and 4.9 volts) •Highly precise detection voltage • Detection voltage with hysteresis characteristic ∆VD = 50 mV for ranks C to K ∆VD = 100 mV for ranks L to U •Low current consumption: IDD = 1µA (typ.) for VDD= 5 V •Wide selection of output types: CMOS output, Nchannel open drain output, and •inverted CMOS output •Wide selection of package types: M, TO-92, and a mini type for surface mounting |
| 描述与应用 | •CMOS LSI的电压检测 •三针元素，无需调整 检测行列（17级之间的选择范围广 2.0和4.9伏） •高度精确的检测电压 •检测电压迟滞特性ΔVD到K=50 mV的行列Ç ΔVD以取得行列L=100毫伏到U •低功耗：IDD= VDD = 5 V1μA（典型值） •宽选择输出类型：CMOS输出，N沟道开漏输出，•倒置CMOS输出 •宽选择封装类型：M，TO-92，和一个迷你型表面贴装 |
