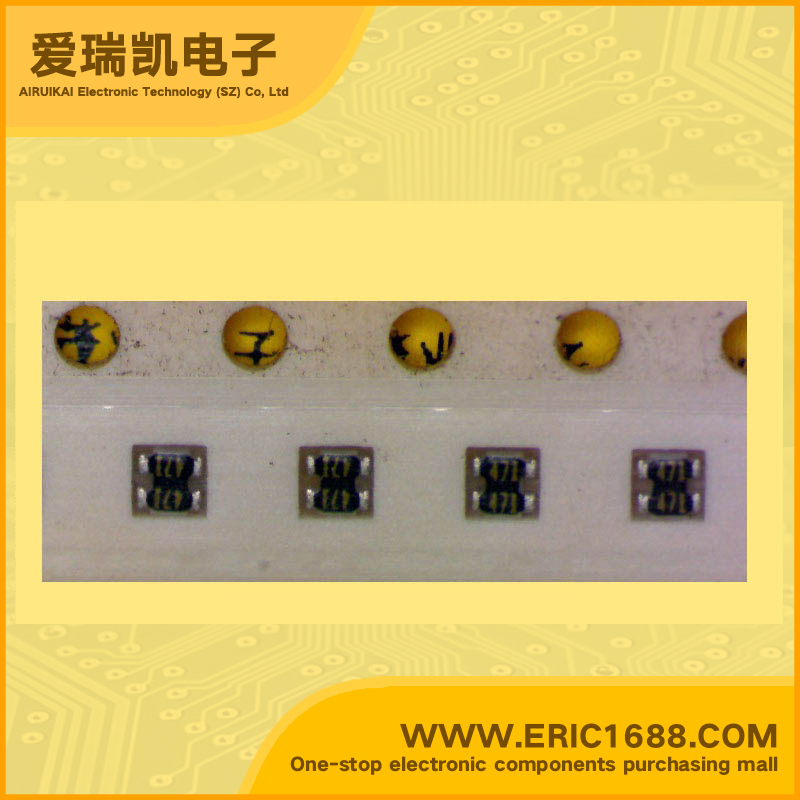

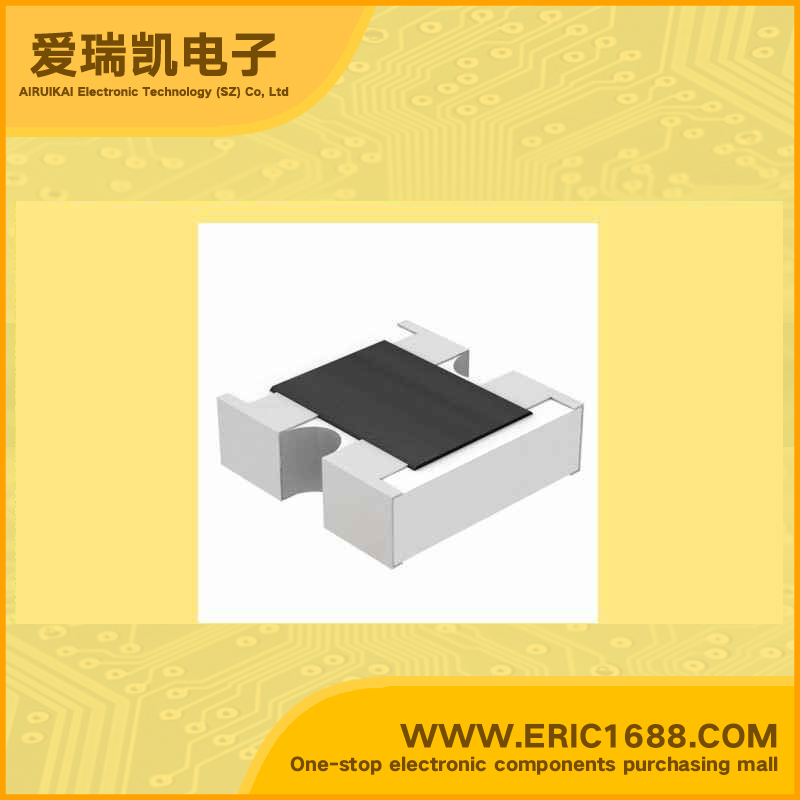

2 Resistor Network/Array MNR12EOAJ471 470ΩOhm 2(0603)-470R
| 电阻值 Resistance | 470Ω/Ohm |
| 误差 Tolerance | ±5% |
| 电阻器数 Number of Resistors | 2 |
| 引脚数 Number of Pins | 4 |
| 功耗 Power Dissipation | 62.5mW |
| Description & Applications | Chip resistor networks MNR12 (0603×2 size) Features 1) Convex electrodes Easy to check the fillet after soldering is finished. 2) Small, light, rectangular 2-chip network Area ratio is 65% smaller than that of MNR32, while weight ratio has been cut 75%. 3) High-density mounting Can be mounted even more densely than two 0603 chips (MCR03), and mounting costs are lower. 4) Compatible with a wide range of mounting equipment. Squared corners make it excellent for mounting using image recognition devices. 5) ROHM resistors have approved ISO-9001 certification. |
| 描述与应用 | 片式电阻网络 MNR12（0603×2尺寸） 特点 1）凸电极 易焊接完成后，检查圆角。 2）体积小，重量轻，长方形2芯片的网络 3）高密度安装 可以更密集安装超过两个0603芯片（MCR03），和安装成本较低。 4）具有广泛的安装设备兼容。 5）ROHM电阻已通过ISO-9001认证。 |
