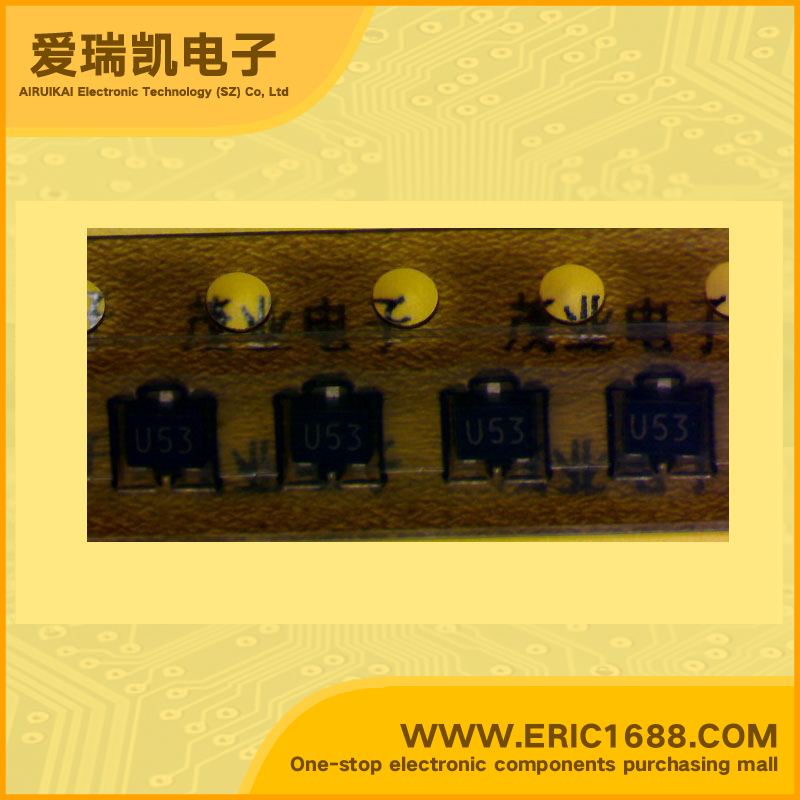

HALL IC MRSS31U SOT-323 marking U53/U5X/U5Y/U5Z
| 感应范围 Sensing Range | 2.0mT跳闸,0.5mT释放 2.0mT Trip,0.5mT Release |
| 类型 Type | 霍尔效应开关 Hall Effect Switch |
| 电源电压 Voltage - Supply | 2.5-3.7V |
| 电源电流 Current - Supply | 5µA |
| 输出电流 Current - Output (Max) | |
| Description & Applications | Micro power Built-in IC ultra-minimum MR sensor Micro power (15µW(typ):Vcc=3V) 1.Dimension (Unit:mm) and High-sensitivity(2mT(typ)) (suited for battery-operation) Ultra-small size MR(Magneto-resistance)sensor Volume and mounting area are 50% smaller than MRSS22L. Height is about 4mm lower than MRSS22L. Operating in one way magnetic field Operating with independent pole (easily manufacture) Superior Temperature stability Lead free goods |
| 描述与应用 | 微电源内置IC超最低MR传感器 “微功率（15μW（典型值）：VCC= 3V）1。尺寸（单位：mm） 和高感光度（200万吨（典型值）） （适用于电池操作） 超小尺寸 MR（磁阻）传感器 体积和安装面积为50％ 小于MRSS22L。 身高约4mm低于 MRSS22L。 经营单程磁场的 工作与独立极 （容易制造） 卓越的温度稳定性 无铅货“ |
