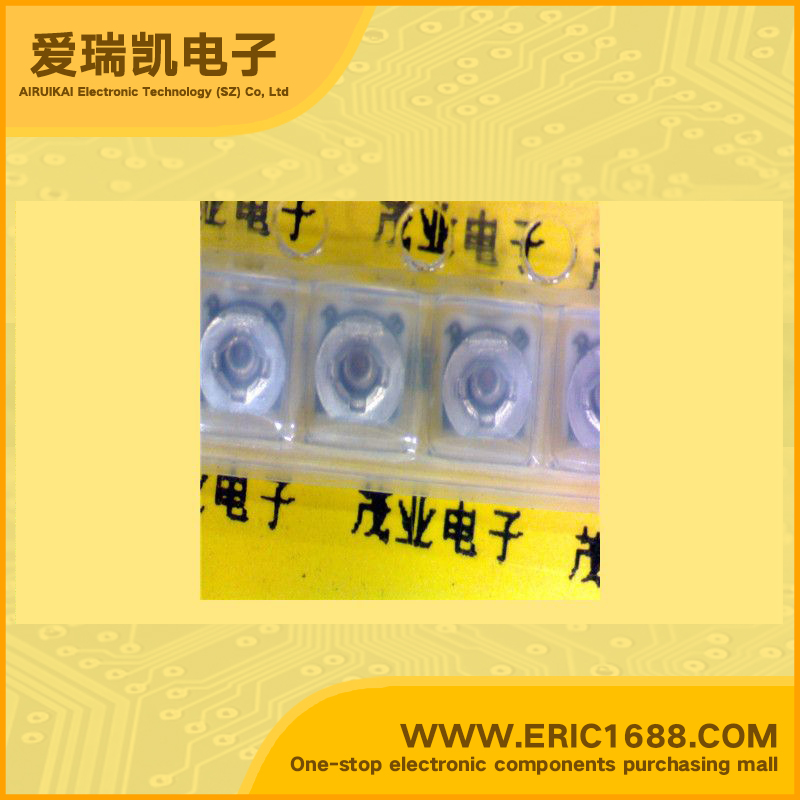

Trimmer Potentiometer MVR34HXBRN102 1KΩ/Ohm 3X3-1K marking 13

Hot selling goods

Product description
电阻值
Resistance
1KΩ/Ohm
额定功率
Power
0.1W,1/10W
容差
Tolerance
±25%
温度系数
Temperature Coefficient
±250ppm/°C
圈数
Number of Turns
单圈 Single
调节类型
Adjustment Type
顶部调节 Top Adjustment
端子类型
Termination Style
J引线 J Lead
Description & Applications Chip trimmer potentiometers MVR34 The MVR34 chip trimmer potentiometer is designed for use in automatic regulators. With its highly stable and reliable ruthenium oxide resistor on an alumina substrate, it offers outstanding dependability in a small, lightweight package. Features 1) Excellent for use in automatic regulators. 2) Easy to set manually using a regular phillips screwdriver. 3) Superb solder ability thanks to extra soldering electrode. 4) Close match between wiper and dielectric reduces noise. 5) Mounting can be automated by using a carrier tape.
描述与应用 贴片微调电位器 MVR34 芯片MVR34的微调电位器设计用于自动调节器。凭借其高度稳定和可靠的氧化钌电阻在氧化铝基板上,在一个小型,轻便的包,它提供了出色的可靠性。 特点 1)很棒用于自动调节器。 2)简易手动设置使用一个普通的十字螺丝刀。 3)优良的可焊性要归功于额外的焊接电极。 4)缩小微调和电介质之间隙,降低了噪音。
