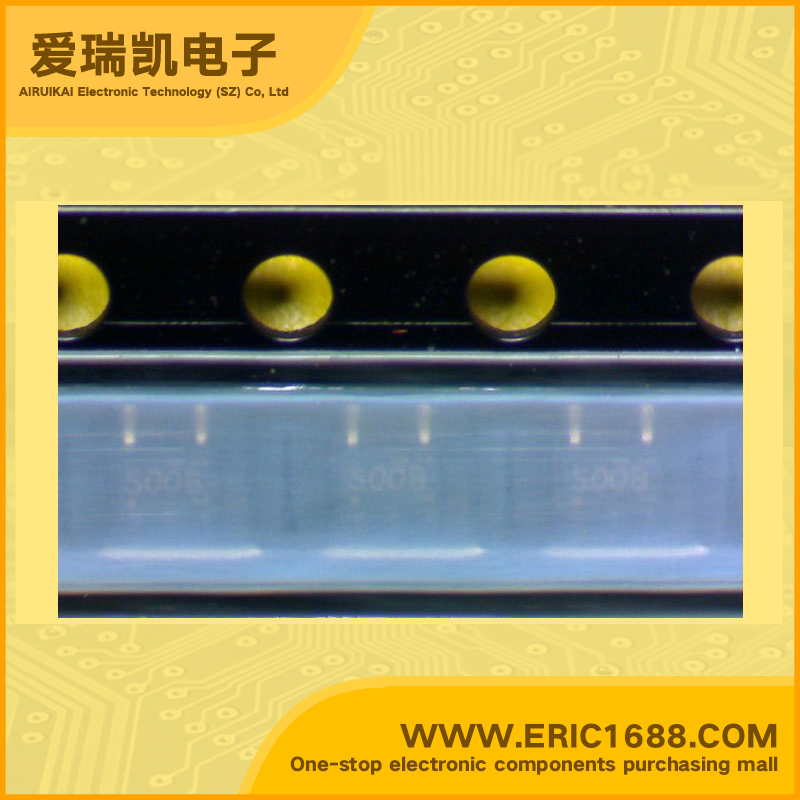

Integrated Circuit（IC） NAND gate NC7S00P5X SOT-353/SC70-5/SC-88A marking S00
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平 Logic Level - Low | 0.5V |
| 高逻辑电平 Logic Level - High | 1.5V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 6.5ns @ 6V，50pF |
| Description & Applications | 2-Input NAND Gate ；Features Space saving SOT23 or SC70 5-lead package Ultra small MicroPak leadless package High speed: tPD 3.5 ns typ Low Quiescent Power: ICC < 1 µA Balanced Output Drive: 2 mA IOL, −2 mA IOH Broad VCC Operating Range: 2V−6V Balanced Propagation Delays Specified for 3V operation |
| 描述与应用 | 2输入与非门;特性 节省空间的SOT23或SC705引线封装 超小型的MicroPak无铅封装 高速：TPD3.5 ns（典型值） 低静态功耗：ICC<1μA 平衡输出驱动器：2毫安毫安IOH IOL，-2 宽广的VCC操作范围：2V-6V 平衡传输延时 3V工作电压规定 |
