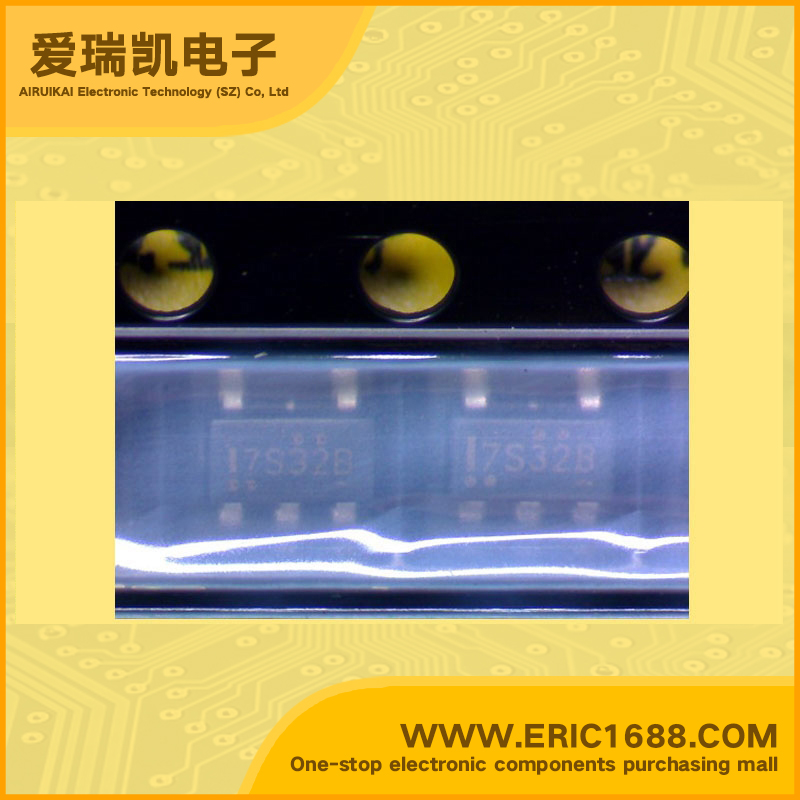

Integrated Circuit（IC） OR gate NC7S32M5X SOT-153/SC-74A/SOT23-5 marking 7S32
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平 Logic Level - Low | 0.5V |
| 高逻辑电平 Logic Level - High | 1.5V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7ns @ 6V，50pF |
| Description & Applications | 2-Input OR Gate ；Features Space saving SOT23 or SC70 5-lead package High Speed; tPD 3.5 ns typ Low Quiescent Power; ICC < 1 µA Balanced Output Drive; 2 mA IOL, −2 mA IOH Broad VCC Operating Range: 2V–6V Balanced Propagation Delays Specified for 3V Operation |
| 描述与应用 | 2输入或门;特性 节省空间的SOT23或SC705引线封装 高速; TPD3.5 ns（典型值） 静态功耗低; ICC<1μA 平衡输出驱动器;毫安毫安IOH IOL，-2 宽广的VCC操作范围：2V-6V 平衡传输延时 3V操作规定 |
