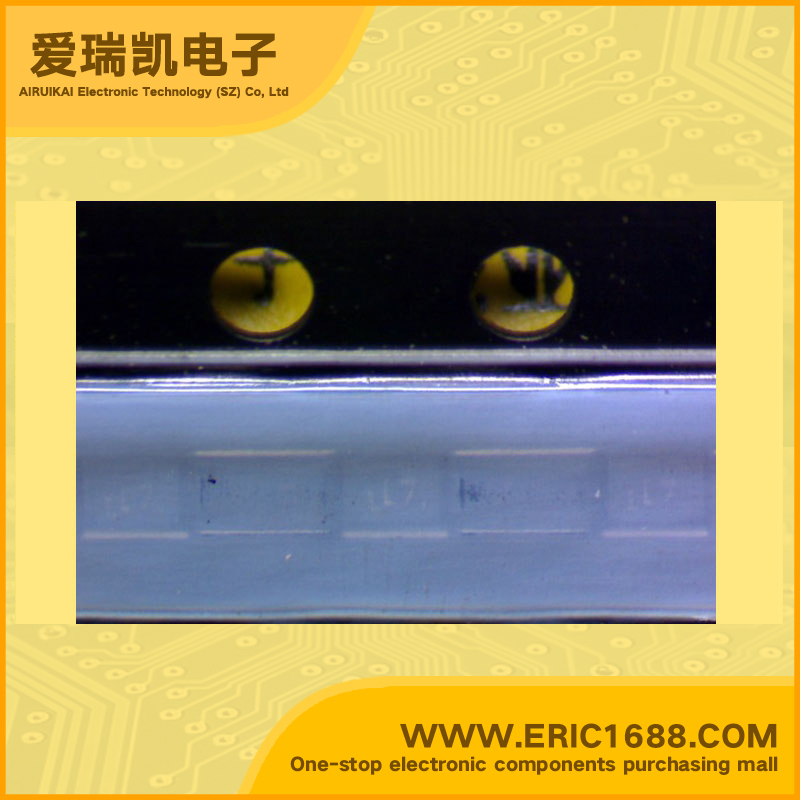

NC7SP157L6X Signal Switch, Multiplexer, Decoder MAC06A/6-UFDFN/TSOP-6 marking
| 逻辑类型 Logic Type | 多路复用器 Multiplexer |
| 电路数 Number of Circuits | 1 x 2:1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2.6mA，2.6mA |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 0.9 V ~ 3.6 V |
| 低逻辑电平 Logic Level - Low | The NC7SP157 is a single 2-Input Non-Inverting Multiplexer from Fairchild’s Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V VCC.The internal circuit is composed of a minimum of inverter stages, including the output buffer, to enable ultra low static and dynamic power. The NC7SP157, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation. 0.9V to 3.6V VCC supply operation 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V Power-Off high impedance inputs and outputs Static Drive (IOH/IOL) ±2.6 mA @ 3.00V VCC Uses patented Quiet Series noise/EMI reduction circuitry Ultra small MicroPakTMleadfree package Ultra low dynamic power |
| 高逻辑电平 Logic Level - High | NC7SP157是一个来自飞兆半导体的超低功耗（ULP）系列TinyLogic的单一2输入非反相复用器。非常适于电池寿命是至关重要的应用中。该产品是专为超低功耗VCC工作范围为0.9V至3.6V的VCC操作。该内部电路由逆变器阶段组成，包括输出缓冲器，使能超低静态和动态功耗。NC7SP157，降低了驱动器的要求，设计独特，优化的电源和速度，并用先进的CMOS技术制造，以达到最佳的一流的高速运转，同时保持极低的CMOS功耗。 0.9V至3.6V的VCC电源操作 3.6V过压容限I/O，在VCC从0.9V到3.6V时 断电高阻抗输入和输出 静态驱动（IOH/ IOL）±2.6 mA@3.00V VCC 采用专利的静音系列噪声/EMI抑制电路 超小型MicroPakTM无铅封装 动态功耗超低 |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
