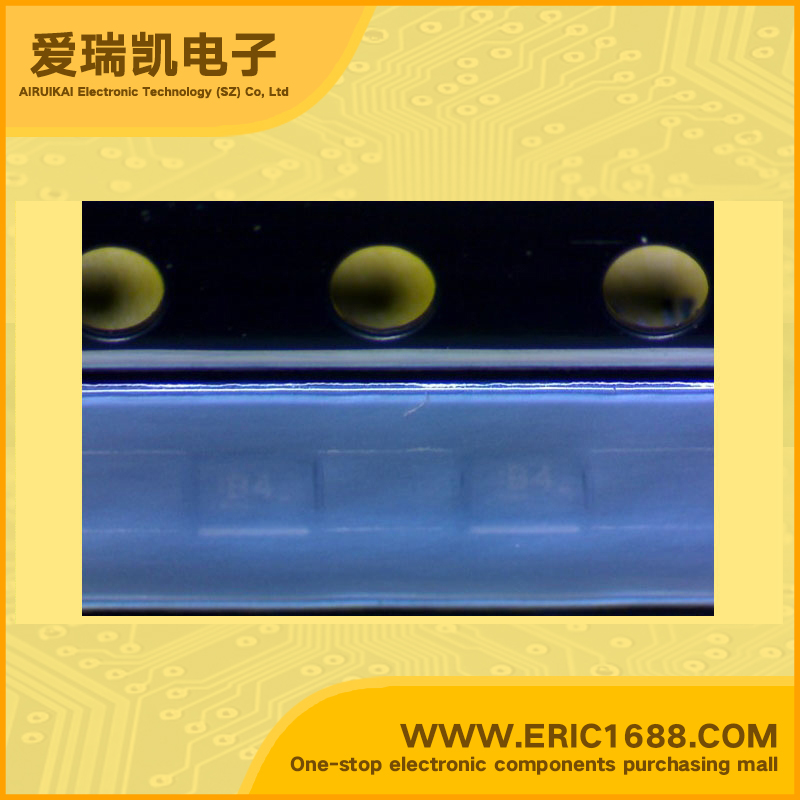

NC7SZ19L6X Signal Switch, Multiplexer, Decoder MAC06A/6-UFDFN/TSOP-6 marking B4
| 逻辑类型 Logic Type | 解码器/多路复用器 Decoder/Demultiplexer |
| 电路数 Number of Circuits | 1 x 1:2 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 32mA，32mA |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 1.65 V ~ 5.5 V |
| 低逻辑电平 Logic Level - Low | The NC7SZ19 is a 1-of-2 decoder with a common output enable. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and outputs are high impedance when VCC is 0V.Inputs tolerate voltages up to 5.5V independent of VCC operating range. Space saving SC70 6-lead surface mount package Ultra small MicroPakTMleadless package Ultra High Speed: tPD 2.7 ns Typ into 50 pF at 5V VCC Broad VCC Operating Range; 1.65V to 5.5V Power down high impedance inputs/outputs Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented |
| 高逻辑电平 Logic Level - High | NC7SZ19是一个有着一个共同的输出使能的1-2解码器。该设备采用先进的CMOS技术制造，实现超高速，高输出驱动，同时在广泛的VCC工作范围保持较低的静态功耗。设备被指定为工作在1.65V至5.5V的VCC工作范围。当VCC为0V，输入和输出是高阻抗。耐输入电压高达5.5V，独立于VCC工作范围。 SC70 6引脚表面贴装封装节省空间 MicroPakTM超小型无铅封装 取消选择时高阻抗输出 超高速：TPD2.5 ns（典型值）到50 pF，在5V VCC时 宽VCC工作电压范围1.65V到5.5V 断电高阻抗输入/输出 过压容限输入方便5V到3V翻译 专利的噪声/ EMI抑制电路实现 |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
