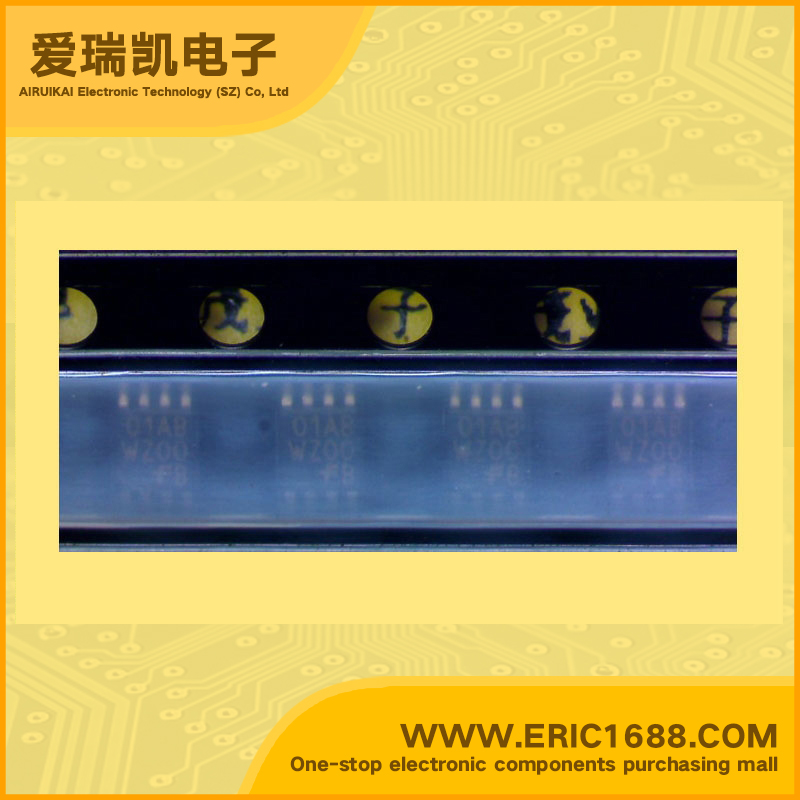

Integrated Circuit（IC） NAND gate NC7WZ00K8X VFSOP8/US8 marking WZ00
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 2 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.55V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 3.6ns @ 5V，50pF |
| Description & Applications | Features TinyLogic UHS Dual 2-Input NAND Gate Space saving US8 surface mount package MicroPak¥ Pb-Free leadless package Ultra High Speed; tPD 2.4 ns typ into 50 pF at 5V VCC High Output Drive; r24 mA at 3V VCC Broad VCC Operating Range; 1.65V–5.5V Matches the performance of LCX when operated at 3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented |
| 描述与应用 | 特性 TinyLogic UHS双2输入与非门 US8表面贴装封装节省空间 采用MicroPak¥无铅无铅封装 超高速; TPD2.4 ns（典型值）为50 pF的5V VCC 高输出驱动器R24毫安3V VCC 宽VCC工作电压范围1.65V-5.5V 操作时的性能相匹配的LCX在3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施 |
