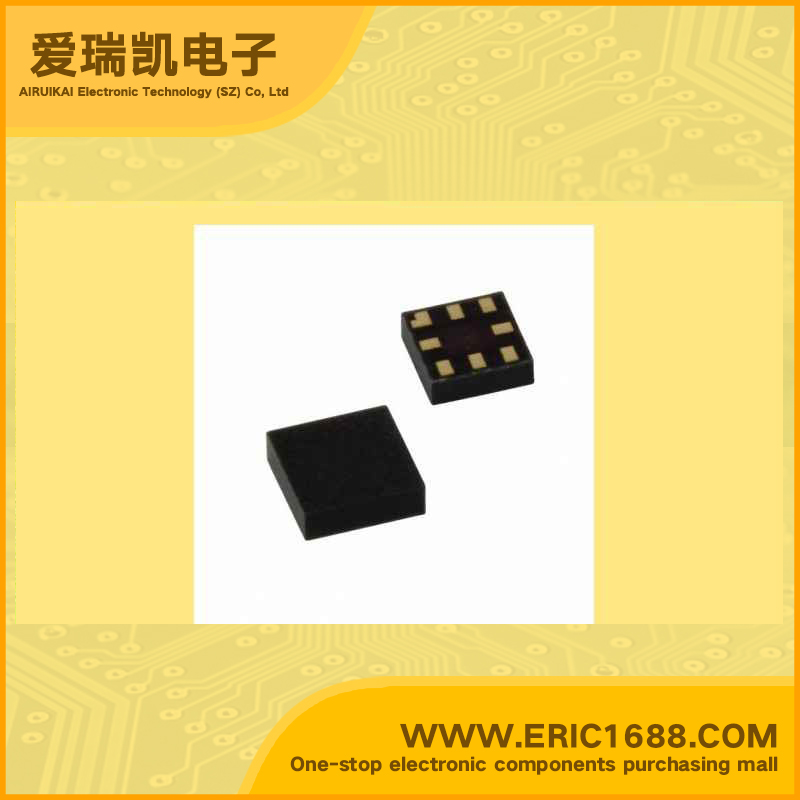

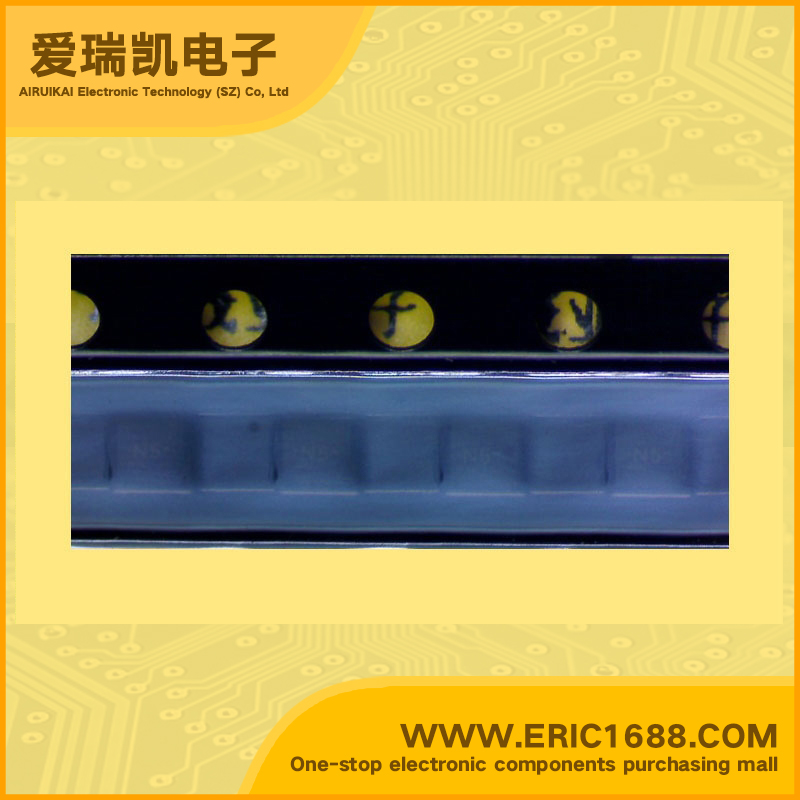

Integrated Circuit（IC） OR gate NC7WZ32L8X 8-XFQFN marking N5
| 逻辑类型 Logic Type | 或门 OR Gate |
| 电路数 Number of Circuits | 2 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.55V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 3.7ns @ 5V，50pF |
| Description & Applications | Features TinyLogic UHS Dual 2-Input OR Gate Space saving US8 surface mount package MicroPak Pb-Free leadless package Ultra high speed tPD 2.4 ns Typ into 50 pF at 5V VCC High output drive ±24 mA at 3V VCC Broad VCC operating range 1.65V to 5.5V Matches the performance of LCX when operated at 3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented |
| 描述与应用 | 特性 TinyLogicUHS双2输入或门 US8表面贴装封装节省空间 采用MicroPak无铅无铅封装 超高速TPD2.4 ns（典型值）为50 pF的5V VCC 高输出驱动±24 mA在3V VCC 宽广的VCC经营范围为1.65V至5.5V 操作时的性能相匹配的LCX在3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施 |
