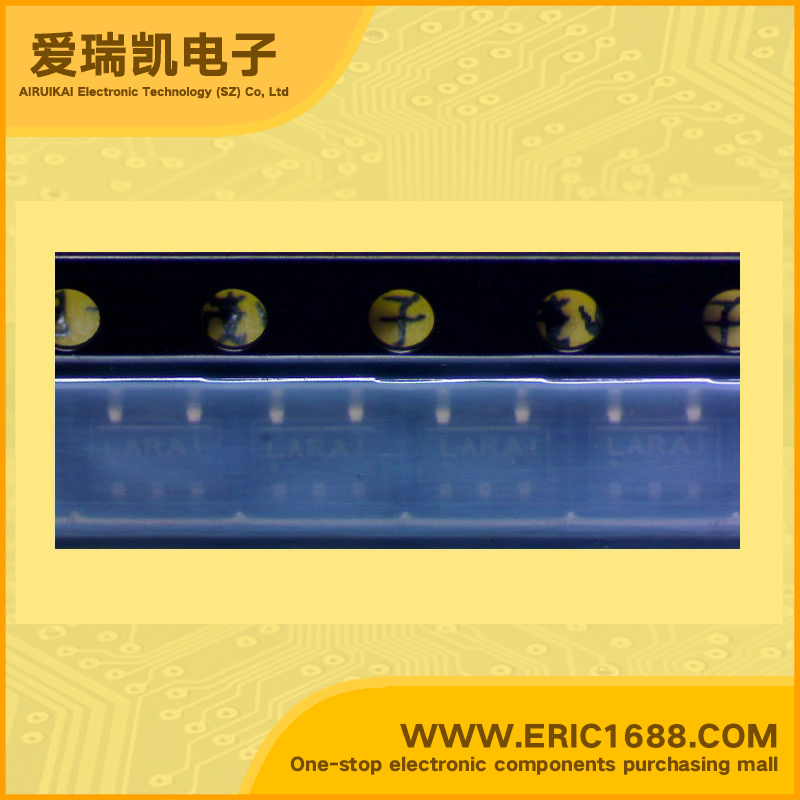

NCP551SN27T1 LDO Voltage Regulator 2.7V 40mV With Enable Pin SOT-153/TSOP-5/SOT23-5 marking LAR Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 12V |
| 输出电压VOUT Voltage - Output | 2.7V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 40mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 150 mA CMOS Low Iq Low-Dropout Voltage Regulator ;•Low Quiescent Current of 4.0 A Typical • Maximum Operating Voltage of 12 V • Low Output Voltage Option • High Accuracy Output Voltage of 2.0% • NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes • Battery Powered Instruments • Hand−Held Instruments • Camcorders and Cameras |
| 描述与应用 | 150毫安的CMOS低Iq 低压差电压 稳压器;•低静态电流的一个典型的4.0v 最大工作电压为12 V， •低输出电压选项 •高输出电压精度为2.0％ •NCV前缀为汽车和其他需要现场应用 和控制的变化 •电池供电的仪器 •手持式仪表 •摄像机和照相机 |
