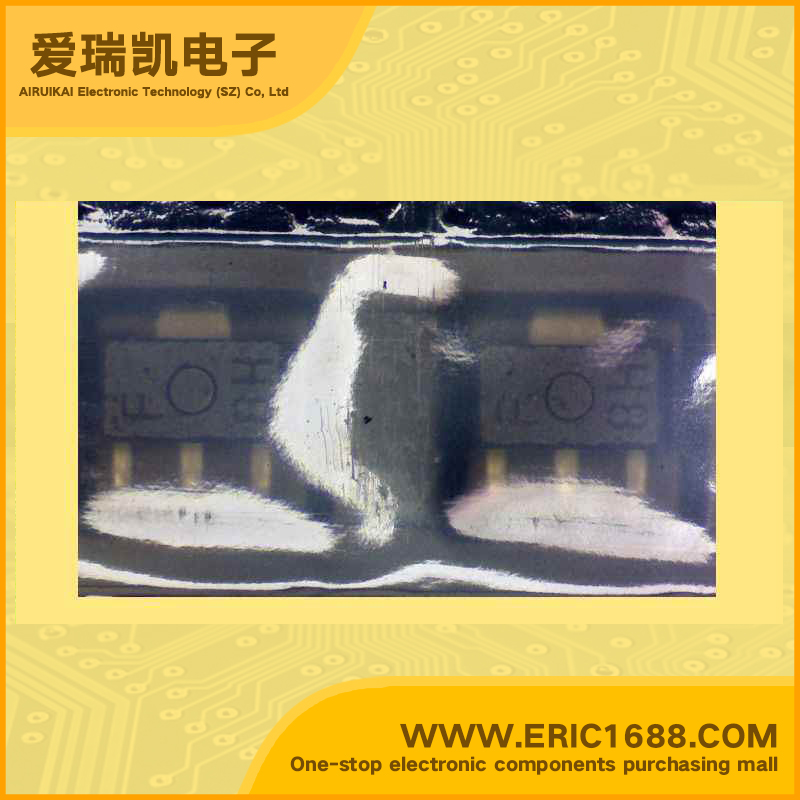

NJM1431AU Voltage Reference Power Management IC 2.465V~36V SOT-89 marking F Adjustable High-Precision Shunt Regulators
| 参考类型 Reference Type | |
| 输出电压Vo Voltage - Output | 2.465V~36V |
| 误差 Tolerance | ±1% |
| 温度系数 Temperature Coefficient | |
| 输入电压 Voltage - Input | 2.465V~36V |
| 阴极电流 Current - Cathode | 1mA |
| 输出电流IOUT Current - Output | 100mA/0.1A |
| Description & Applications | FEATURES • ADJUSTABLE HIGH PRECISION SHUNT REGULATOR • Operating Voltage VREF to 36V • Precision Voltage Reference 2.465V±1% • 2.9mm × 1.5mm to MTP (SOT23) package • Adjustable Output Voltage For External Resistance two Parts. • Bipolar Technology • Package Outline TO-92, SOT-89 (3pin), MTP5 |
| 描述与应用 | 特点 •可调高精度分流稳压器 •工作电压VREF至36V •精密参考电压2.465V±1％ •2.9毫米×1.5mm至MTP（SOT23封装）封装 •可调输出电压对于外部电阻两部分组成。 •双极技术 •封装TO-92，SOT-89（3PIN），MTP5 |
