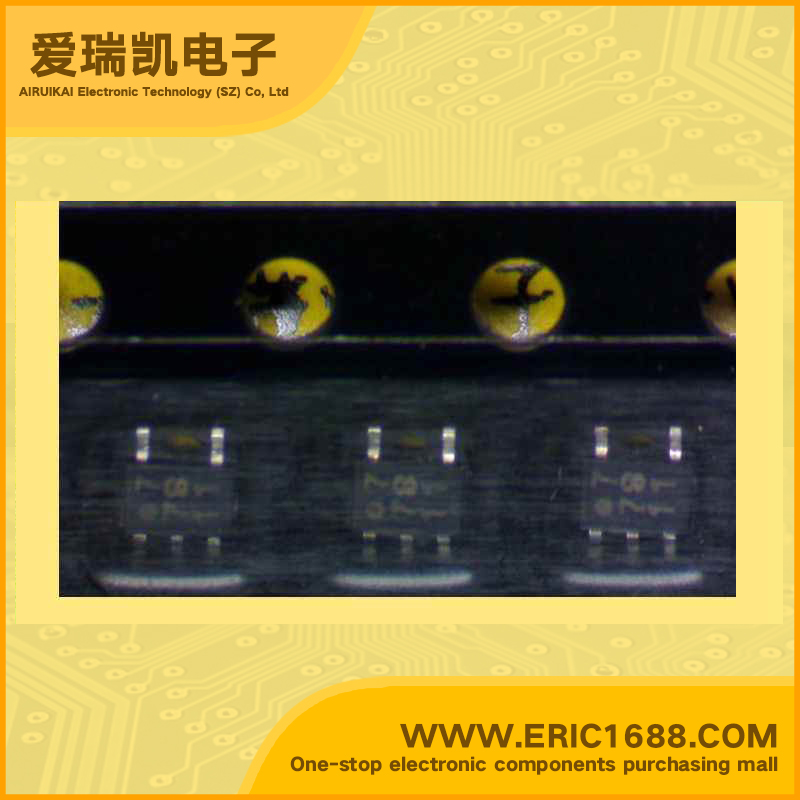

NJM2828F3-15 LDO Voltage Regulator -15V 130mV/0.13V SOT-353/SC88A/SC70-5 marking 77811 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-14V
输出电压VOUT
Voltage - Output
-15V
输出电流Io
Current - Output
130mA/0.13A
最大压降VDO
Voltage - Dropout
130mV/0.13V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
250mW/0.25W
Description & ApplicationsNegative Output Low Drop Out voltage regulator ;•Low Current Consumption 0.13V (typ.) @Io=60mA • High Precision Output ±1.5% •High Ripple Rejection 65dB(typ.) @f=1kHz, Vo=-7V Version •Output capacitor with 0.1F ceramic capacitor. • Output Current Io(max.)=100mA • ON/OFF Control(Positive voltage control from 0 to +5V) • Soft-start Function • Shunt SW Function • Internal Thermal Overload Protection • Internal Short Circuit Current Limit • Bipolar Technology • Package Outline SC88A
描述与应用负输出低压降稳压器;•低电流消耗(典型值)0.13V@ IO =60毫安 •高精度输出±1.5% •高纹波抑制65分贝(典型值)@ F =1kHz时,VO=-7V版本 •输出电容与0.1μF的陶瓷电容。 •输出电流Io=100MA(最大) •开/关控制(从0到+5 V的正电压控制) •软启动功能 •分流SW功能 •内部热过载保护 •内部短路电流限制 •双极技术 •封装SC88A
