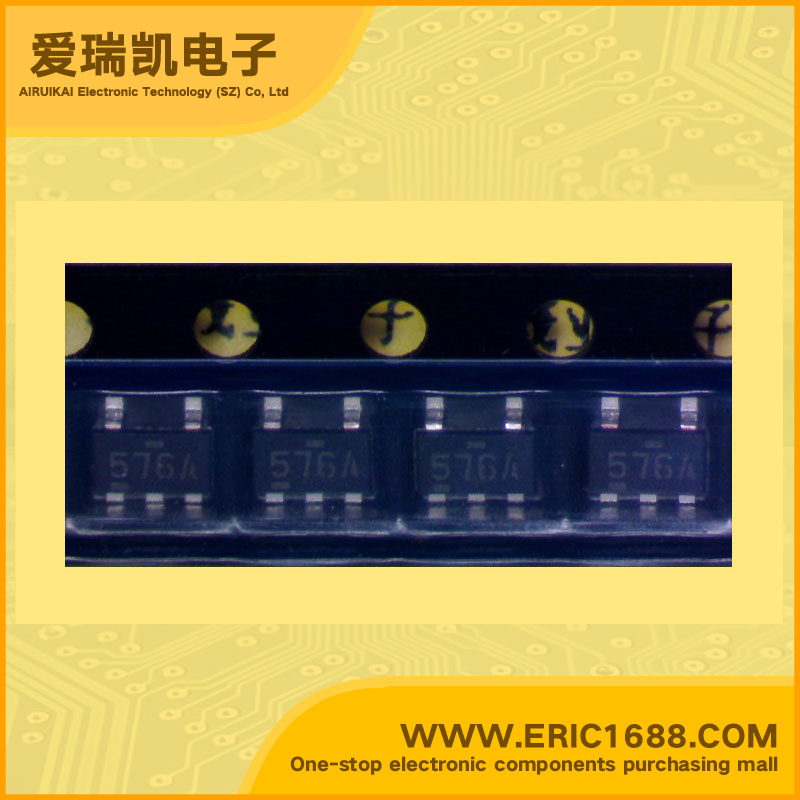

NJM2870F03 LDO Voltage Regulator 3V 120mV/0.12V With Enable Pin SOT-153/MTP5/SOT23-5 marking 57 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 14V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 60mA |
| 最大压降VDO Voltage - Dropout | 120mV/0.12V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | LOW DROPOUT VOLTAGE REGULATOR ；•High Ripple Rejection 56dB ≤ RR (DC < f < 60kHz) 66dB typ. (f=100Hz) 60dB typ. (f=1kHz) •Output Noise Voltage Vno=30µV typ.(Cp=0.01µF) •Output Current Io(max.)=150mA •High Precision Output Vo±2% •Low Dropout Voltage ∆VI -O=0.12V typ. (Io=60mA, Vo≥1.8V) •Input Voltage range +2∼+14V (Vo=1.5V Version) •ON/OFF Control (Active High) •Output capacitor with 4.7uF ceramic capacitor •Internal Short Circuit Current Limit •Internal Thermal Overload Protection •Bipolar Technology |
| 描述与应用 | 低压差稳压器;•高纹波抑制56分贝≤RR（DC |
