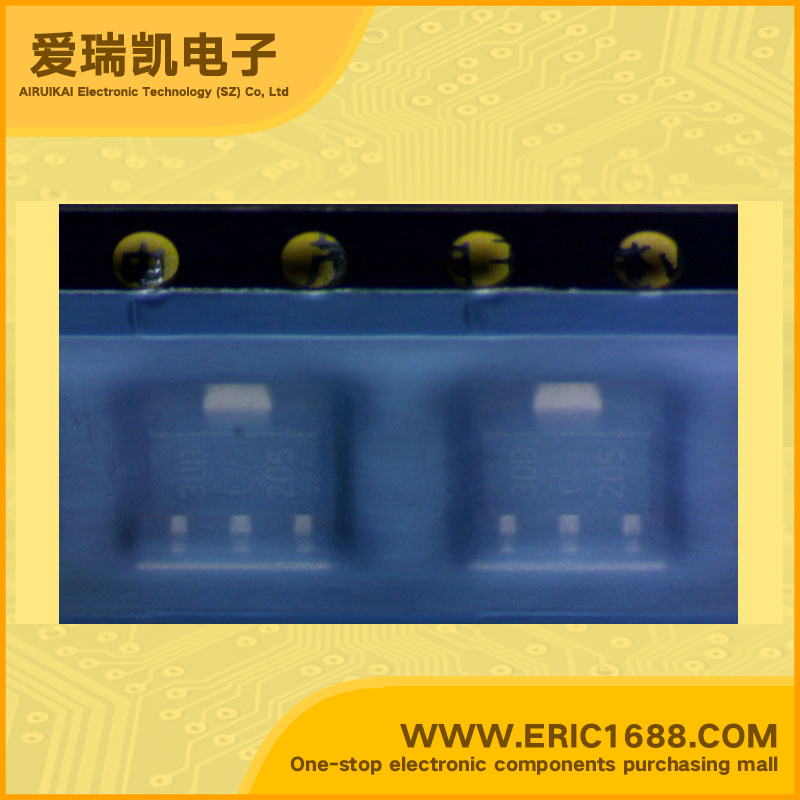

NJU7202U30 LDO Voltage Regulator 3V 400mV/0.4V SOT-89 marking 30B Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 15V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 50mA |
| 最大压降VDO Voltage - Dropout | 400mV/0.4V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 300mW/0.3W |
| Description & Applications | HIGH OUTPUT CURRENT C-MOS 3-TERMINAL VOLTAGE REGULATOR ;•High Output Current IO = 100mA • Low Operating Current 20µA typ • Low Dropout Voltage ∆VIO < 0.6V @IO = 100mA • Wide Operating Voltage Range • Small Temperature Coefficient of Output Voltage • Short Current Protection Circuit |
| 描述与应用 | 高输出电流的C-MOS3端稳压;•高输出电流IO=100MA •低工作电流20μA（典型值） •低的漏失电压ΔVIO<0.6V@ IO=100毫安 •宽工作电压范围 输出电压的温度系数小 •短路保护电路 |
