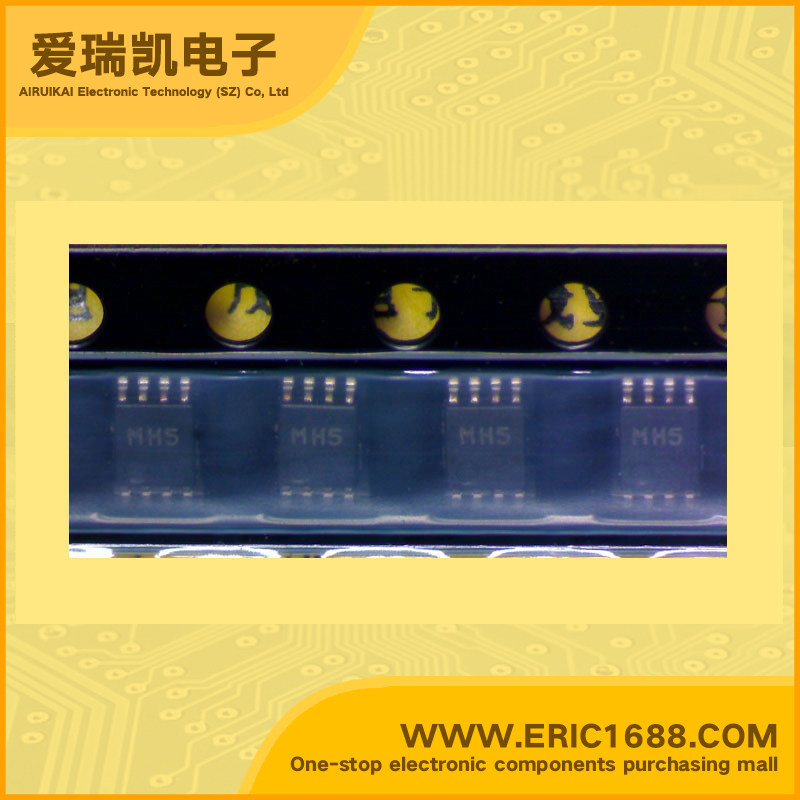

Integrated Circuit（IC） positive edge Flip Flops NL17SZ74US SOT-383/US8 marking MH
| 逻辑类型 Logic Type | 设置（预设）和复位 Set(Preset) and Reset |
| 电路数 Number of Circuits | D型 D-Type |
| 输入数 Number of Inputs | 差分 Differential |
| 电源电压Vcc Voltage - Supply | 1 |
| 静态电流Iq Current - Quiescent (Max) | 1 |
| 输出高，低电平电流 Current - Output High, Low | 250MHz |
| 低逻辑电平 Logic Level - Low | 2.2ns |
| 高逻辑电平 Logic Level - High | 正边沿 Positive Edge |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 32mA，32mA |
| Description & Applications | 1.65 V ~ 5.5 V |
| 描述与应用 | Single D Flip Flop The NL17SZ74 is a high performance, full function Edge triggered D Flip Flop, with all the features of a standard logic device such as the 74LCX74. • Extremely High Speed: tPD 2.6 ns (typical) at VCC = 5 V • Designed for 1.65 V to 5.5 V VCC Operation • 5 V Tolerant Inputs – Interface Capability with 5 V TTL Logic • LVTTL Compatible • LVCMOS Compatible • 24 mA Balanced Output Sink and Source Capability • Near Zero Static Supply Current (10 µA) Substantially Reduces System Power Requirements • Replacement for NC7SZ74 • Tiny Ultra Small Package Only 2.1 X 3.0 mm • High ESD Ratings: 2000 V Human Body Model High ESD Ratings: 200 V Machine Model • Chip Complexity: FET = 64 |
