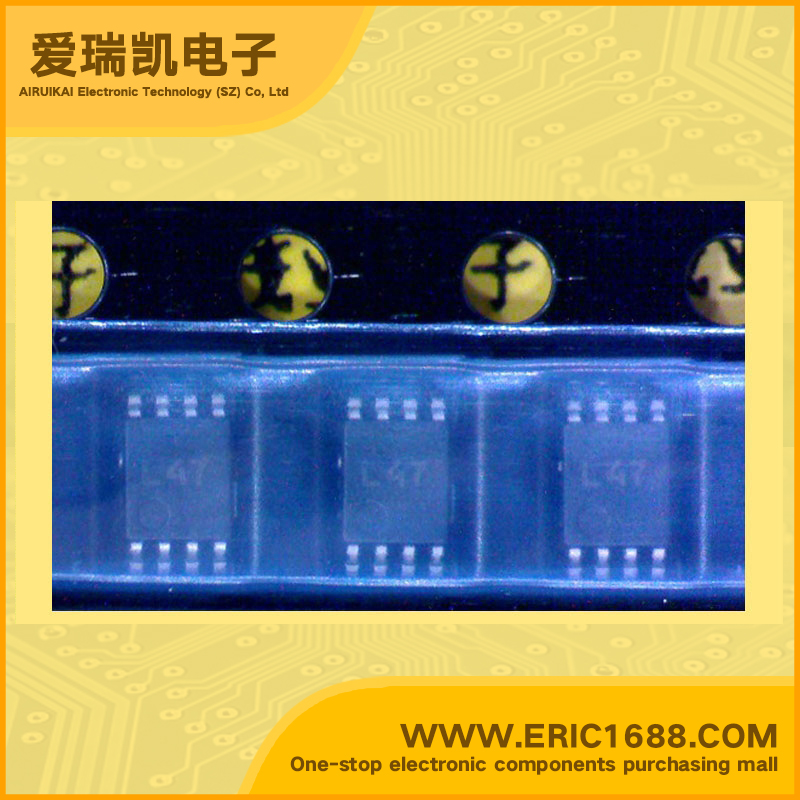

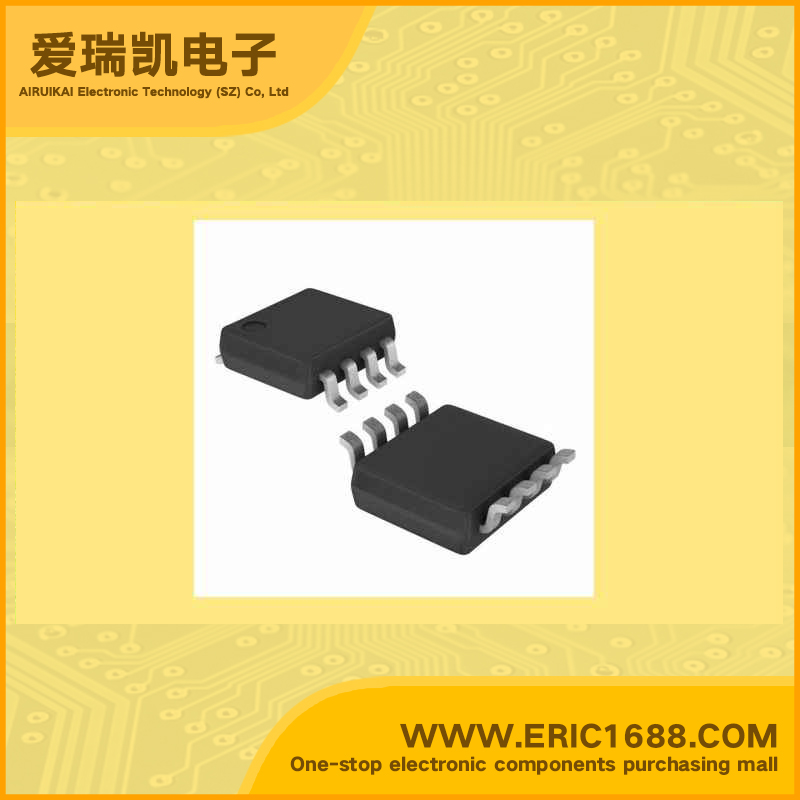

Integrated Circuit(IC) OR gate NL27WZ32USG VFSOP8/US8 marking L47

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
2
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
1uA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.1V~0.55V
高逻辑电平
Logic Level - High
1.55V~3.8V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
3.7ns @ 5V,50pF
Description & ApplicationsFeatures Dual 2−Input OR Gate Extremely High Speed: tPD 2.5 ns (typical) at VCC = 5 V Designed for 1.65 V to 5.5 V VCC Operation Over Voltage Tolerant Inputs LVTTL Compatible − Interface Capability With 5 V TTL Logic with VCC = 3 V LVCMOS Compatible 24 mA Balanced Output Sink and Source Capability Near Zero Static Supply Current Substantially Reduces System Power Requirements Replacement for NC7WZ32 Chip Complexity: FET = 120 Pb−Free Package is Available
描述与应用特性 双2输入或门 极高的速度:TPD2.5 ns(典型)在VCC= 5 V 为1.65 V至5.5 V的VCC运作 过电压容限输入 VCC= 3 V与5 V TTL逻辑接口功能与LVTTL的兼容 - 路LVCMOS兼容 24 mA平衡输出库和源能力 近零静态电流大幅度降低了系统电源要求 更换NC7WZ32 芯片的复杂性:FET= 120 无铅包装是可用
