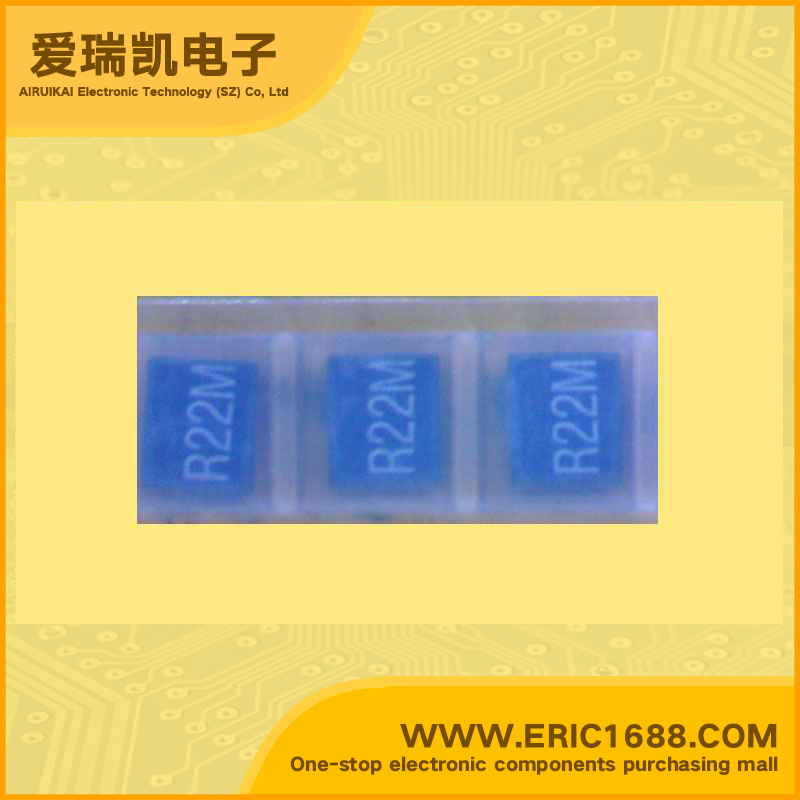

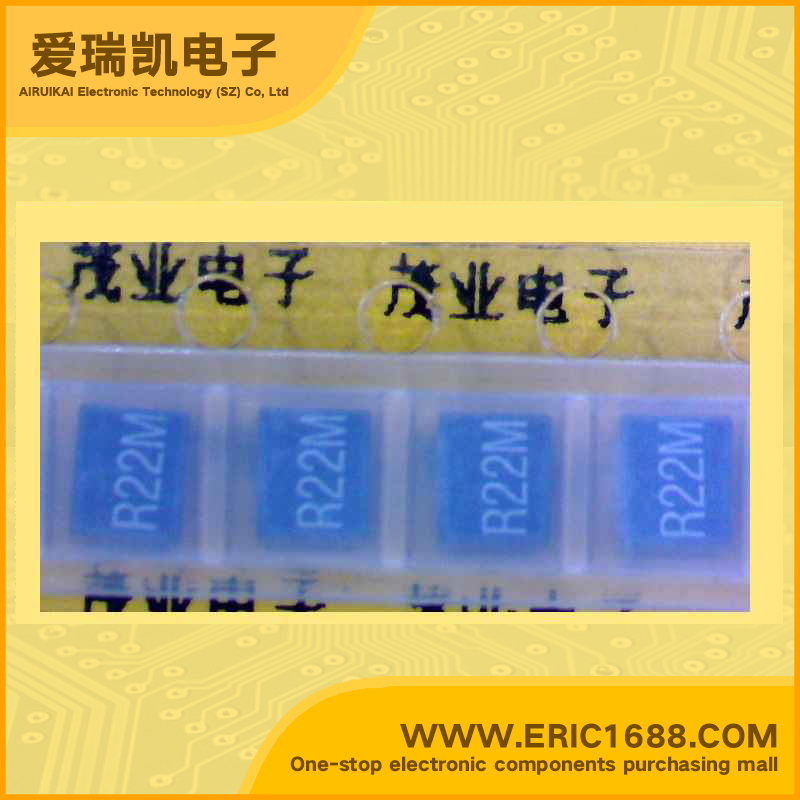

low power inductor NL322522T-R22M 220nH/0.22UH 3225-R22M R222M

Model：NL322522T-R22M
Mark / screen / code / typing：R222M
Manufacturer：
Date Code：05+ 05+
Package：3225-R22M
Standard Package：2000
Min Order：10

Hot selling goods

Product description

电感值 Inductance	220nH/0.22UH
误差 Tolerance	±20%
额定电流 Current Rating	450mA
饱和电流 Current - Saturation
不同频率时的Q值 Q @ Frequency	30 @ 25.2MHz
自振谐频率SRF Frequency - Self Resonant	350MHz
DC电阻DCR DC Resistance (DCR)	0.32Ω/Ohm
屏蔽 Shielding	屏蔽 Shielded
Description & Applications	NL Series NL3225 Type FEATURES • The NL series are available in 5 form factors ranging from 2016 to 5650. • Utilizing a miniaturized winding structure, these products provide high Q characteristics. • Inductance tolerance is ±5 percent.
描述与应用	NL系列NL3225类型特点 NL系列5种形式因素，从2016到5650不等。 •利用微型绕组结构，具有高Q特性。 •电感容差为±5％。
