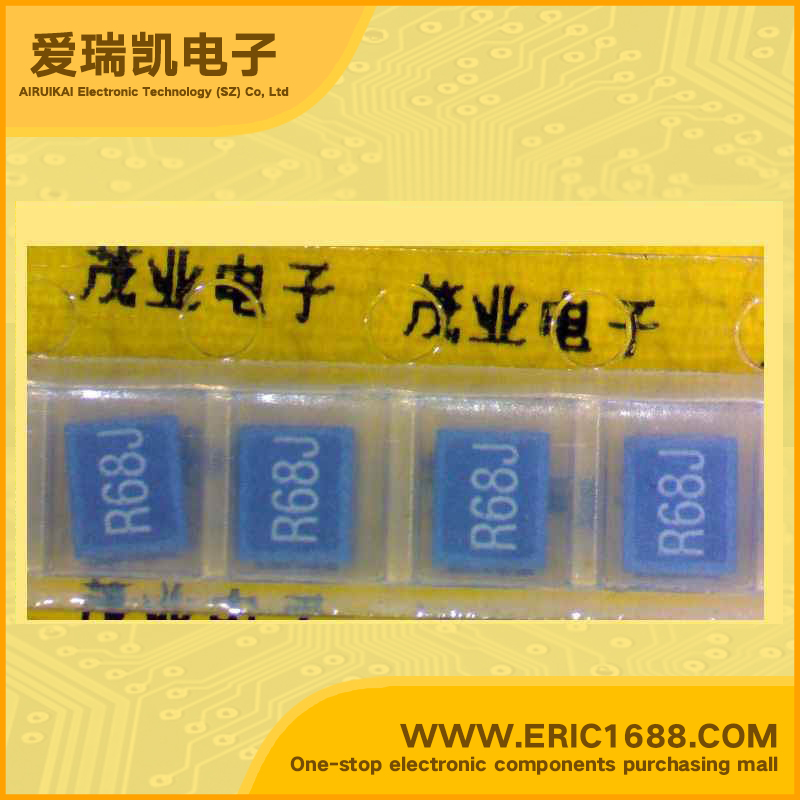

low power inductor NL322522T-R68J 680nH/0.68UH 3225-R68J R68J

Model：NL322522T-R68J
Mark / screen / code / typing：R68J
Manufacturer：
Date Code：05+ 05+
Package：3225-R68J
Standard Package：2000
Min Order：10

Hot selling goods

Product description

电感值 Inductance	680nH/0.68UH
误差 Tolerance	±5%
额定电流 Current Rating	450mA
饱和电流 Current - Saturation
不同频率时的Q值 Q @ Frequency	30 @ 25.2MHz
自振谐频率SRF Frequency - Self Resonant	160MHz
DC电阻DCR DC Resistance (DCR)	0.6Ω/Ohm
屏蔽 Shielding	屏蔽 Shielded
Description & Applications	NL Series NL3225 Type FEATURES • The NL series are available in 5 form factors ranging from 2016 to 5650. • Utilizing a miniaturized winding structure, these products provide high Q characteristics. • Inductance tolerance is ±5 percent.
描述与应用	NL系列NL3225类型特点 NL系列5种形式因素，从2016到5650不等。 •利用微型绕组结构，具有高Q特性。 •电感容差为±5％。

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
RN1906 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 80 200mW/0.2W SOT-363/US6/SC70-6 marking XF switching inverting interface driver circuit	RN1906 Mark：XF Package：SOT-363/US6/SC70-6	-	Batch number：12+ROHS 12+ROHS	168400 Min Order:10
TA78DS06F LDO Voltage Regulator 6V 200mV/0.2V SOT-89 marking BP Short-Circuit Protection Over-Temperature Protection	TA78DS06F Mark：BP Package：SOT-89	-	Batch number：04+	0 Min Order:10
2SA1738 PNP transistors（BJT） -15V -30mA 1.5GHz 50~120 -100mV/-0.1V SOT-23/SC-59 marking AKQ highspeed switch	2SA1738 Mark：AKQ Package：SOT-23/SC-59	-	Batch number：03+	0 Min Order:10
HmBD4148XL Switching Diodes 100V 200mA/0.2A SOT-23/SC-59 marking 5H ultra highspeed switch/fast reverse recovery time/low forward voltage	HMBD4148XL Mark：5H Package：SOT-23/SC-59	-	Batch number：05+	3000 Min Order:10
MIC5213-5.0YC5TR LDO Voltage Regulator 5V 280mV/0.28V With Enable Pin SOT-353/SC70-5 marking LAB Short-Circuit Protection Over-Temperature Protection	MIC5213-5.0YC5 Mark：LAB Package：SOT-353/SC70-5	-	Batch number：05+NOPB 05+ROHS	368 Min Order:10
LP3986TLX-2828 LDO Voltage Regulator 2.828V 60mV 8-WFBGA/8-DSBGA marking UAD Short-Circuit Protection Over-Temperature Protection	LP3986TLX-2828 Mark：UAD Package：8-WFBGA/8-DSBGA	-	Batch number：05+	300 Min Order:10
EMH9 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A 150mW/0.15W SOT-563/EMT6 marking H9 switching inverting interface driver circuit	EMH9 Mark：H9 Package：SOT-563/EMT6	-	Batch number：08+ROHS 05+PB23K	66200 Min Order:100
