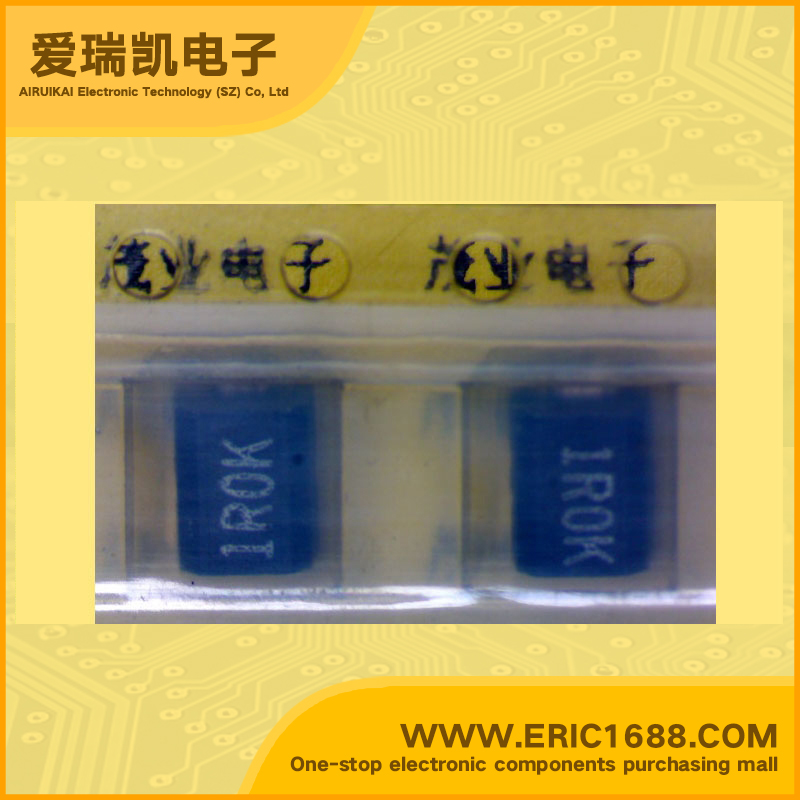

low power inductor NL453232T-1R0K-S 1UH 4532-1R0K 1R0K
| 电感值 Inductance | 1UH |
| 误差 Tolerance | ±10% |
| 额定电流 Current Rating | 450mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 50 @ 7.96MHz |
| 自振谐频率SRF Frequency - Self Resonant | 100.0MHz |
| DC电阻DCR DC Resistance (DCR) | 0.50Ω/Ohm |
| 屏蔽 Shielding | 屏蔽 Shielded |
| Description & Applications | NL Series NL4532 Type FEATURES • The NL series are available in 5 form factors ranging from 2016 to 5650. • Utilizing a miniaturized winding structure, these products provide high Q characteristics. • Inductance tolerance is ±5 percent. |
| 描述与应用 | NL系列NL4532类型 特点 NL系列5种形式因素，从2016到5650不等。 •利用微型绕组结构，具有高Q特性。 •电感容差为±5％。 |
