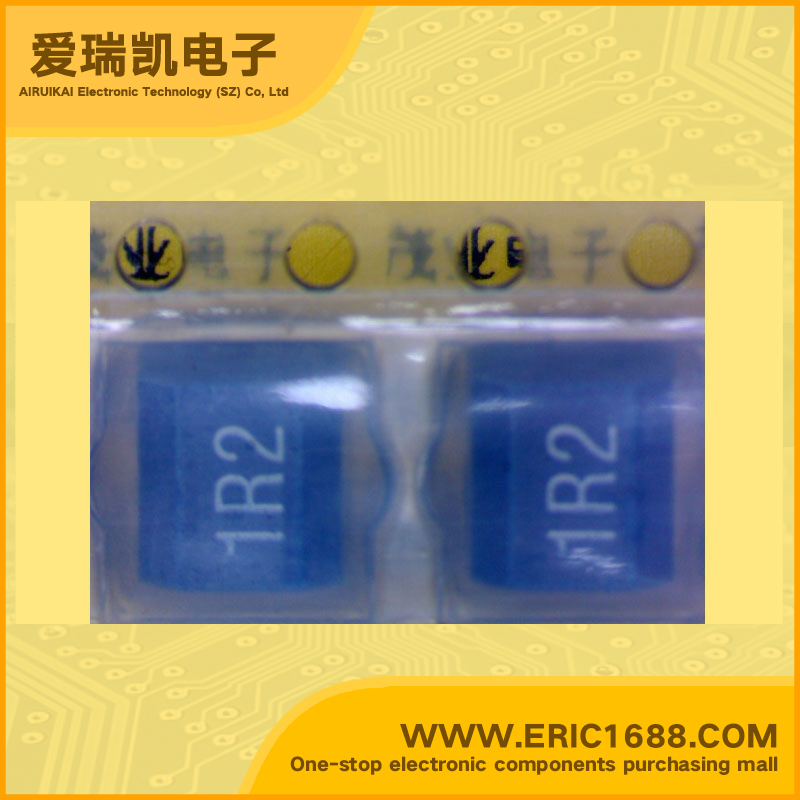

low power inductor NLC565050T-1R2M 1.2UH 5650-1R2M 1R2
| 电感值 Inductance | 1.2UH |
| 误差 Tolerance | ±20% |
| 额定电流 Current Rating | 1700mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 10 @ 7.96MHz |
| 自振谐频率SRF Frequency - Self Resonant | 70MHz |
| DC电阻DCR DC Resistance (DCR) | 0.035Ω/Ohm |
| 屏蔽 Shielding | 无屏蔽 Unshielded |
| Description & Applications | NLC Series NLC565050 FEATURES The NLC series feature low DC resistance and high current handling capacities, making them ideal for power supply line applications. The product has good heat durability that withstands lead-free compatible reflow soldering conditions. Lead-free material is used for the plating on the terminal. The product uses metal terminals, which realize excellent connection reliability. From 1µH to 1000µH, all of the products in the E-12 series are K(±10%) tolerance products. It is a product conforming to RoHS directive. |
| 描述与应用 | NLC系列NLC565050 特点 NLC系列具有低直流电阻和高电流处理能力，使它们成为理想的电源线应用。 该产品具有良好的耐热性，可承受无铅兼容回流焊条件。 无铅材料可用于终端上的电镀。 该产品采用金属终端，实现优异的连接可靠性。 在E-12系列中所有产品都是K（±10％）公差从1μH到1000μH的产品。 这是一个符合RoHS指令的产品。 |
