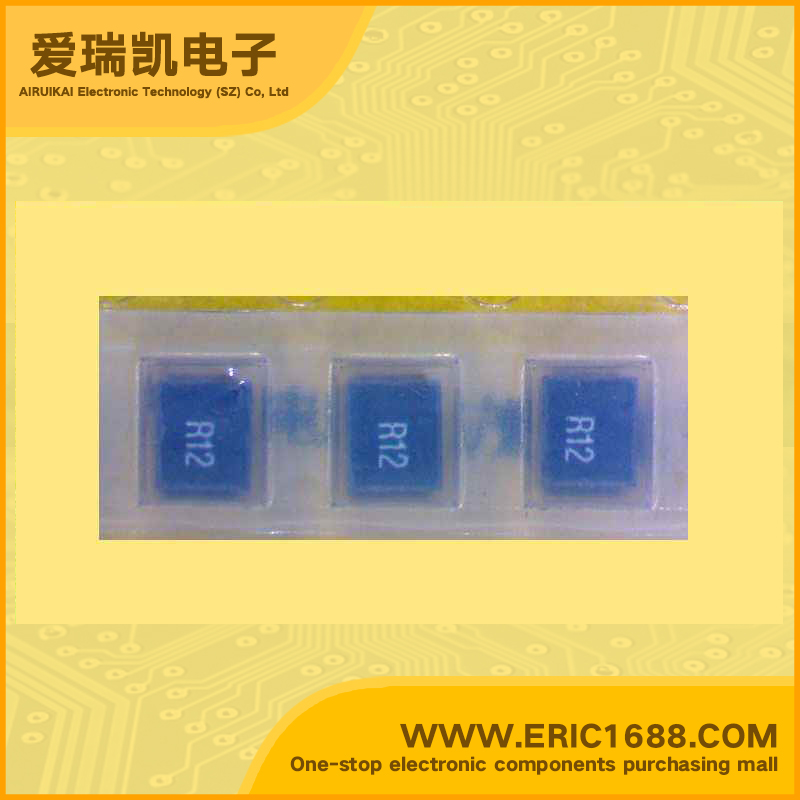

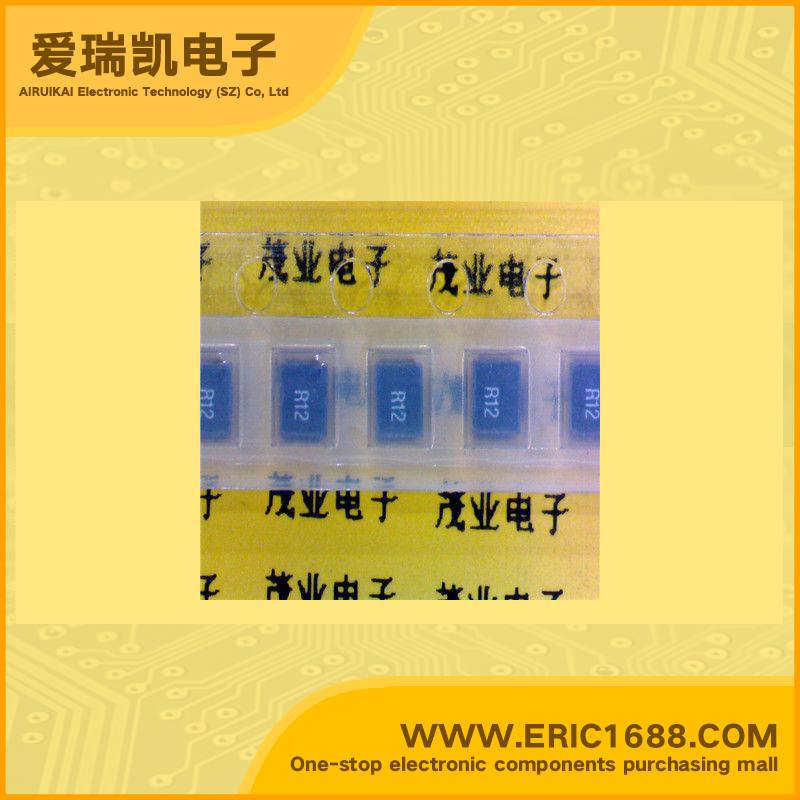

low power inductor NLH252018T-R12J 120nH/0.12UH 2520-R12J R12
| 电感值 Inductance | 120nH/0.12UH |
| 误差 Tolerance | ±5% |
| 额定电流 Current Rating | 550mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 30 @ 25.2MHz |
| 自振谐频率SRF Frequency - Self Resonant | 0.7GHz |
| DC电阻DCR DC Resistance (DCR) | 0.38Ω/Ohm |
| 屏蔽 Shielding | |
| Description & Applications | NLH Series NLH2520 Type FEATURES • Supports operating frequencies of up to 2GHz with nominal inductance values from 10 to 820nH. • Compact winding structure ensures high Q. • Inductance tolerance is ±5 percent. |
| 描述与应用 | NLH NLH2520系列类型 特点 •运行频率高达2GHz，电感值从10到820nH容。 •紧凑型绕组结构，确保高Q值. •电感容差为±5％。 |
