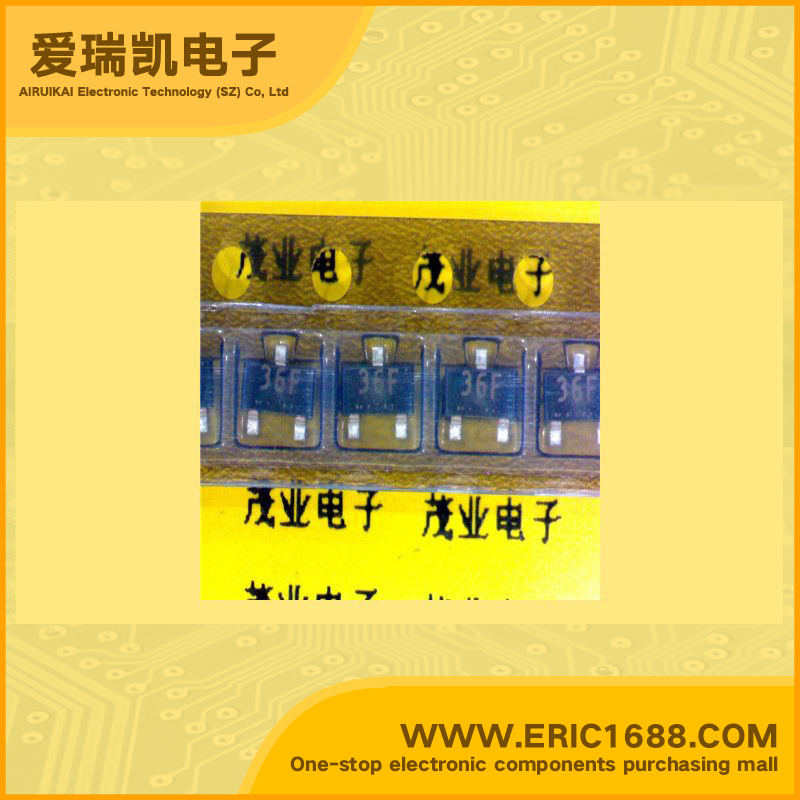

NNCD3.6F-T1B TVS/ESD 0.2W/200mW SOT-23-3.6V marking 36F
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | |
| 反向击穿电压VBR Breakdown Voltage | 3.6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 100W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | 0.2W/200mW |
| Description & Applications | FEATURES • E.S.D NOISE CLIPPING DIODES • ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES(DOUBLE TYPE, ANODE COMMON)3PIN MINI MOLD • Based on the electrostatic discharge immunity test (IEC1000-4-2), the product assures the minimum endurance of 30 kV. • Based on the reference supply of the set, the product achieves a series over a wide range (15 product name lined up). APPLICATIONS • External interface circuit E.S.D protection. • Circuits for Waveform clipper, Surge absorber. |
| 描述与应用 | 特点 •E.S.D噪音限幅二极管 •静电放电噪声削波二极管（double类型，共阳极）3PIN MINI模具 •保证30千伏最小耐力。 •产品达到一系列在很宽的范围内 •外部接口电路E.S.D保护。 •波形剪，浪涌吸收电路。 |
