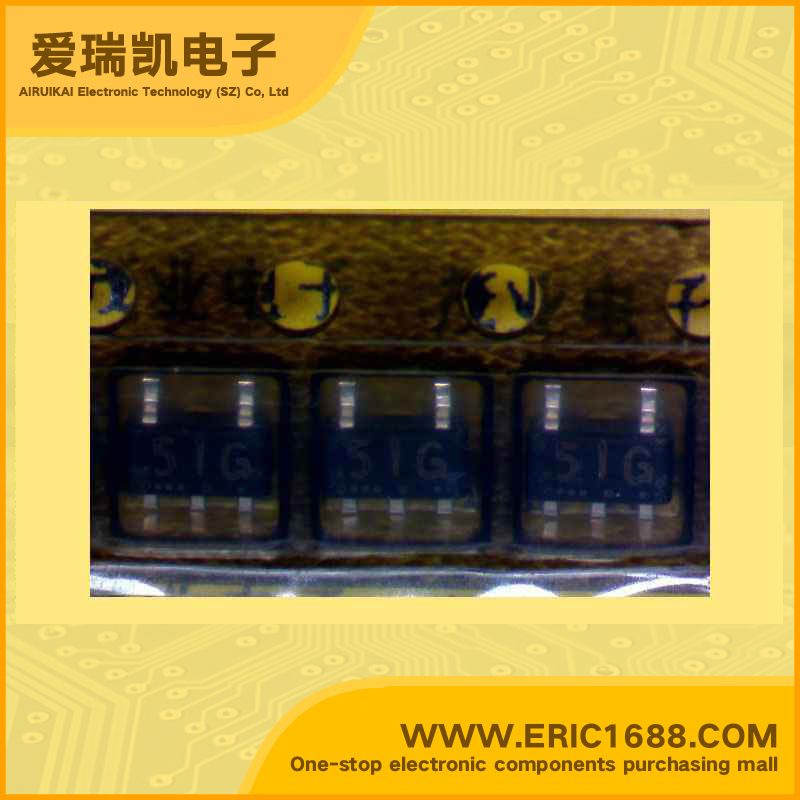

NNCD5.1G TVS/ESD 0.2W/200mW SOT153-5.1V marking 5.1G
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | |
| 反向击穿电压VBR Breakdown Voltage | 5.1V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 85W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | 0.2W/200mW |
| Description & Applications | FEATURES • ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES (DOUBLE TYPE, ANODE COMMON) 5PIN MINI MOLD • Based on the electrostatic discharge immunity test (IEC1000-4-2), the product assures the minimum endurance of 30 KV. • Based on the reference supply of the set, the product achieves a series over a wide range (11 product name lined up). • With 4 elements mounted (common anode) mounted in the 5 PINMINI MOLD package, the product can achieve a high density and automatic packaging. APPLICATIONS • External interface circuit E.S.D protection. • Circuits for Waveform clipper, Surge absorber. |
| 描述与应用 | 特点 •静电放电噪声削波二极管（double类型，共阳极）5PIN MINI模具 •基于静电放电抗扰度试验（IEC1000-4-2），该产品保证30千伏最小耐力。 •基于基准电源的设置，产品达到一系列在很宽的范围内（11个产品名称排队）。 •安装有4个元素（共阳极）安装在5针迷你模具包装，该产品可以实现高密度和自动包装。 应用 •外部接口电路E.S.D保护。 •波形剪，浪涌吸收电路。 |
