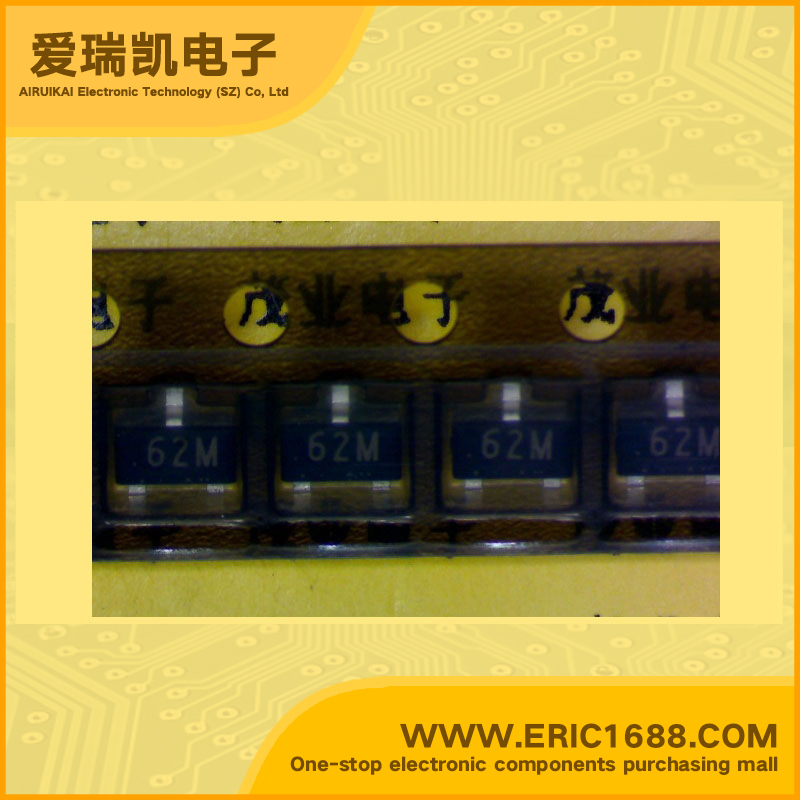

NNCD6.2MF TVS/ESD 0.2W/200mW SOT-23-6.2V marking 62M
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | |
| 反向击穿电压VBR Breakdown Voltage | 6.2V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 2W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | 0.2W/200mW |
| Description & Applications | FEATURES • E.S.D NOISE CLIPPING DIODES • LOW CAPACITANCE TYPE • ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES(QUARTO TYPE: COMMON ANODE)3-PIN MINI MOLD • Based on the electrostatic discharge immunity test (IEC61000-4-2), the product assures the minimum endurance of 30 kV. • Capacitance is small with 20 pF TYP. (at VR = 0 V, f = 1 MHz). It is excellent in the frequency characteristic. APPLICATIONS • External interface circuit E.S.D. protection in the high-speed data communication bus such as USB. |
| 描述与应用 | 特点 •ESD噪音限幅二极管 •低电容静电放电噪声限幅二极管（四开型：共阳极）3-PIN MINI模具 •基于静电放电抗扰度试验（IEC61000-4-2），该产品可确保的最低耐力30千伏。 •小电容与20 pF TYP。 （在VR =0 V，F =1兆赫）它具有优异的频率特性。 应用 •外部接口电路E.S.D.在高速数据保护比如USB的通信总线。 |
