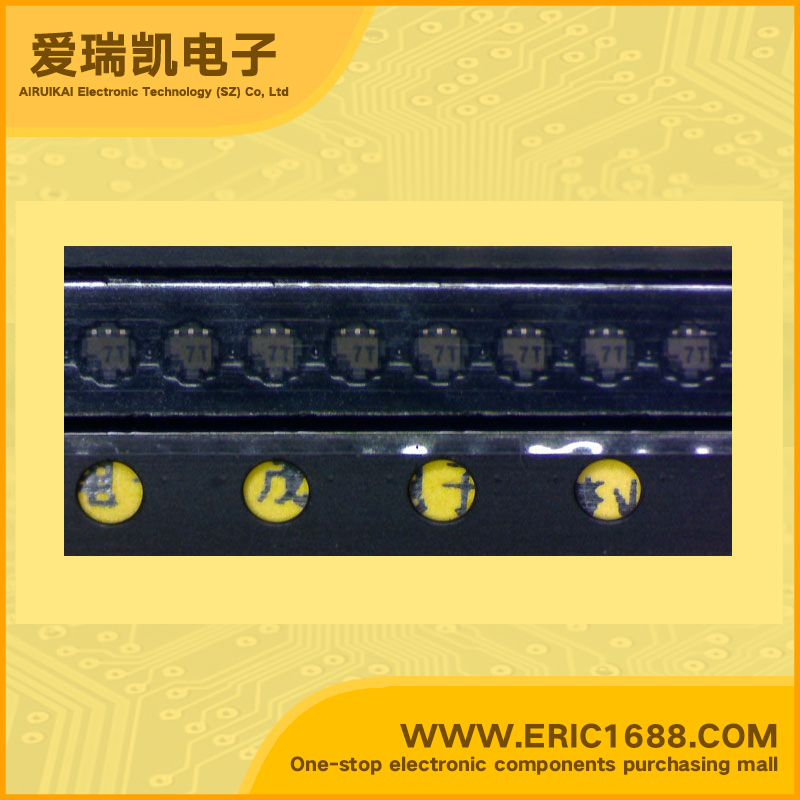

NP043A200A NPN+PNP Complex Bipolar Transistor 50V/-50V 80mA/-80mA 60 SOT-563 marking 7T switch and digital circuit application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V/-50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V/-50V |
| 集电极连续输出电流IC Collector Current(IC) | 80mA/-80mA |
| 截止频率fT Transtion Frequency(fT) | 150MHz/80MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 60 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 250mV-250mV |
| 耗散功率Pc Power Dissipation | 125mW |
| Description & Applications | Features •Silicon NPN Epitaxial Planar Type (Tr1) Silicon PNP Epitaxial Planar Type (Tr2) •SSS-mini type 6-pin package , reduction of the mounting area and assembly cost by one half |
| 描述与应用 | 特点 •NPN硅外延平面型（TR1）PNP硅外延平面型（TR2） •SSS迷你型6引脚封装，安装面积和装配成本减少一半 |
