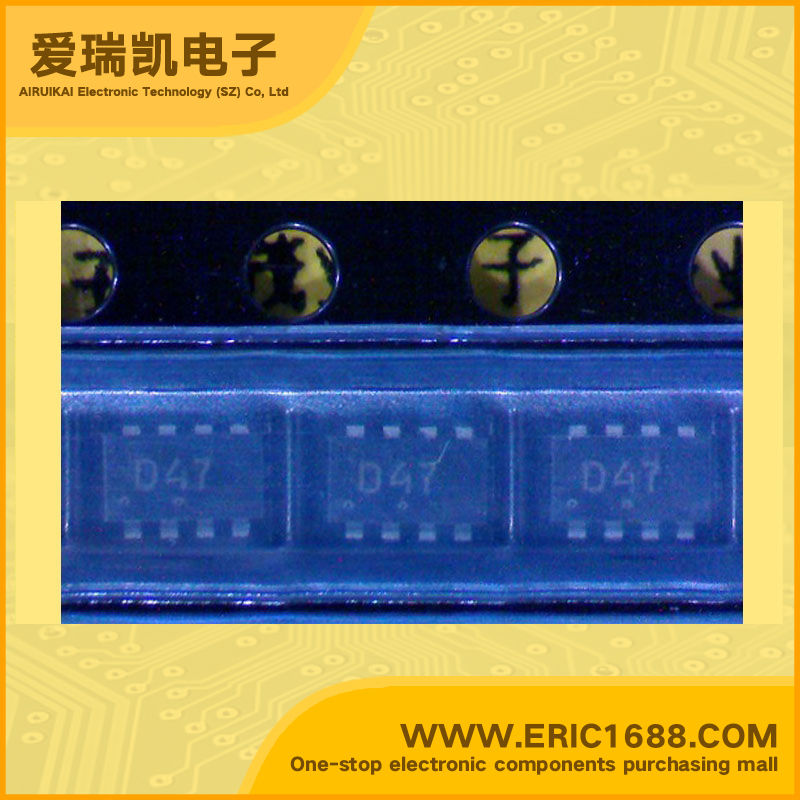

NTHS2101PT1G MOSFET P-Channel -8V -5.4A 0.019ohm Vth:-0.45--1.5V 1206-8 marking D4 1.8Vgate voltage portable equipment application
最大源漏极电压Vds Drain-Source Voltage | -8V |
最大栅源极电压Vgs(±) Gate-Source Voltage | 8V |
最大漏极电流Id Drain Current | -5.4A |
源漏极导通电阻Rds Drain-Source On-State Resistance | 0.019Ω @-5.4A,-4.5V |
开启电压Vgs(th) Gate-Source Threshold Voltage | -0.45--1.5V |
耗散功率Pd Power Dissipation | 1.3W |
Description & Applications | Features • Low Profile (<1.1 mm) Allows it to Fit Easily into Extremely Thin Environments such as Portable Electronics • Designed to Provide Low RDS(on) at Gate Voltage as Low as 1.8 V, the Operating Voltage used in many Logic ICs in Portable Electronics • Simplifies Circuit Design since Additional Boost Circuits for Gate Voltages are not Required • Operated at Standard Logic Level Gate Drive, Facilitating Future Migration to Lower Levels using the same Basic Topology • Pb−Free Package is Available |
描述与应用 | •薄型(<1.1毫米)允许它能够轻松融入极薄 环境,如便携式电子产品 •专为提供低RDS(ON) 低栅极电压为1.8 V, 用于便携式电子产品在许多逻辑IC的工作电压 •简化电路设计,因为其他的门电路升压 电压不 •工作在标准逻辑电平栅极驱动,有利于未来 迁移到下级使用相同的基本拓扑结构 •无铅包装是可用 |
