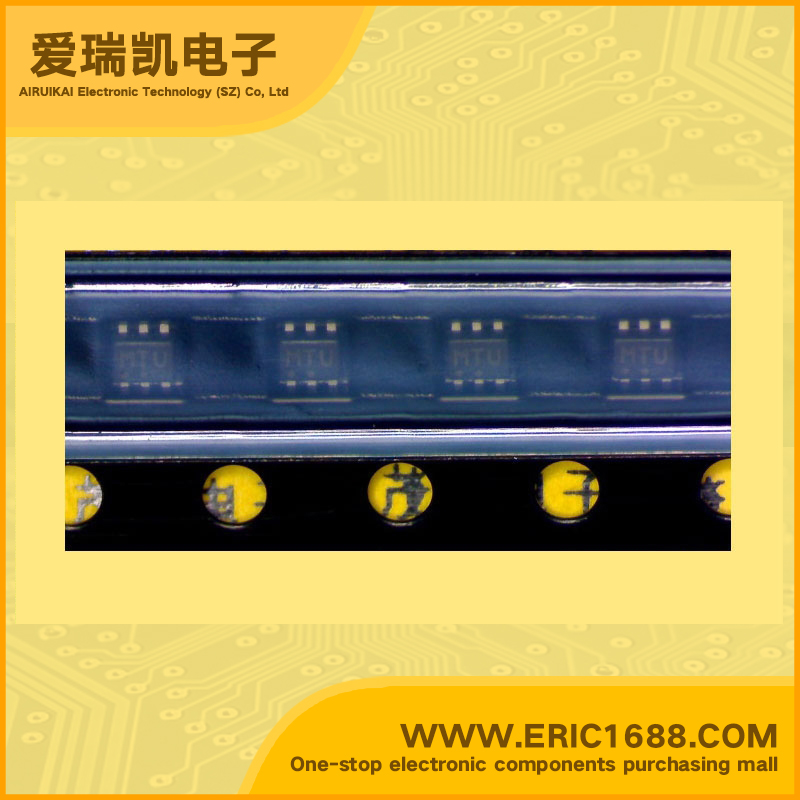

NUP4060AXV6T1G TVS/ESD 5.0V SOT-563-6.8V marking MTU
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5.0V |
| 反向击穿电压VBR Breakdown Voltage | 6.8V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 200W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features • 4−Line Transient Voltage Suppressor Array • Protects up to 4 Lines in a Single SOT−563 Package • ESD Rating: IEC61000−4−2: Level 4Contact (8 kV), Air (15 kV) • VCC Pin = 16 V Protection D1, D2, and D3 Pins = 6.8 V Protection • Low Capacitance (< 7 pF @ 3 V) for D1, D2, and D3 • This is a Pb−Free Device |
| 描述与应用 | 特性 •4线路瞬态电压抑制器阵列 •单SOT-563封装保护4线 •ESD额定值：IEC61000-4-2第4级接触（8千伏，空气（15千伏 •VCC引脚=16 V保护D1，D2和D3引脚=6.8 V保护 •低电容（<7 PF@3 V）D1，D2和D3 •这是一个无铅设备 |
