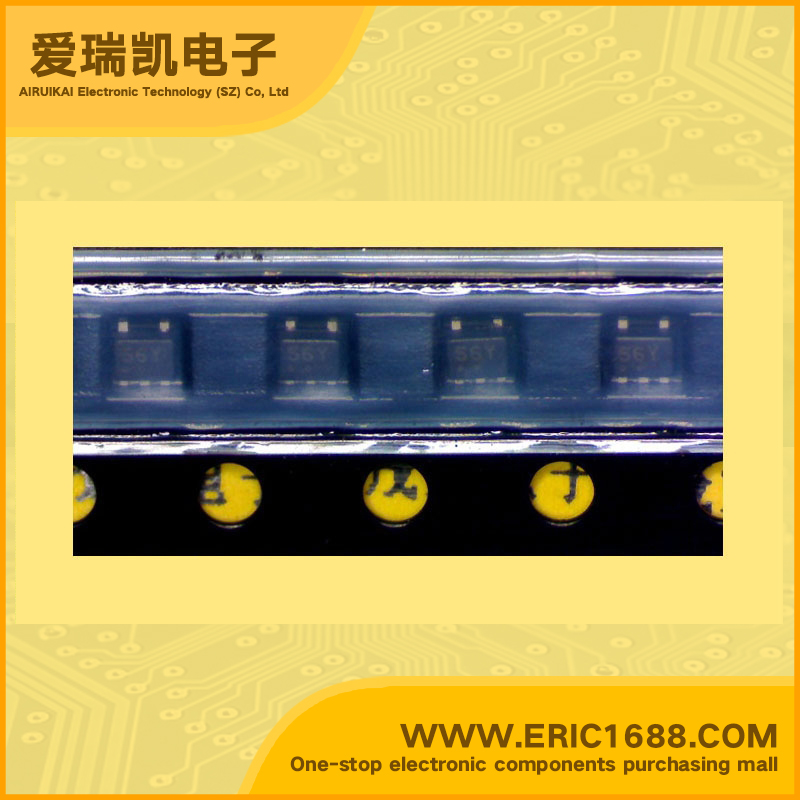

NZQA5V6XV5T1 TVS/ESD 3.0V 10A 0.3W/300mW SOT-553-5.6V marking 56
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 3.0V |
| 反向击穿电压VBR Breakdown Voltage | 5.6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 100W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 10A |
| 额定耗散功率Pd Power dissipation | 0.3W/300mW |
| Description & Applications | Specification Features • Quad Array for ESD Protection • SOT-553 Package Allows Four Separate Unidirectional Configurations • Low Leakage < 1uA @ 3 Volt for • Breakdown Voltage: 5.6 Volt - 6.8 Volt @ 1 mA • ESD Protection Meeting IEC61000-4-2 - Level 4 |
| 描述与应用 | 规格特性 •四阵列ESD保护 •SOT-553封装允许四个单独的单向 配置 •低漏时<1uA@3伏 •击穿电压：5.6伏特 - 6.8伏特@ 1mA •ESD保护符合IEC61000-4-2 - 4级 |
