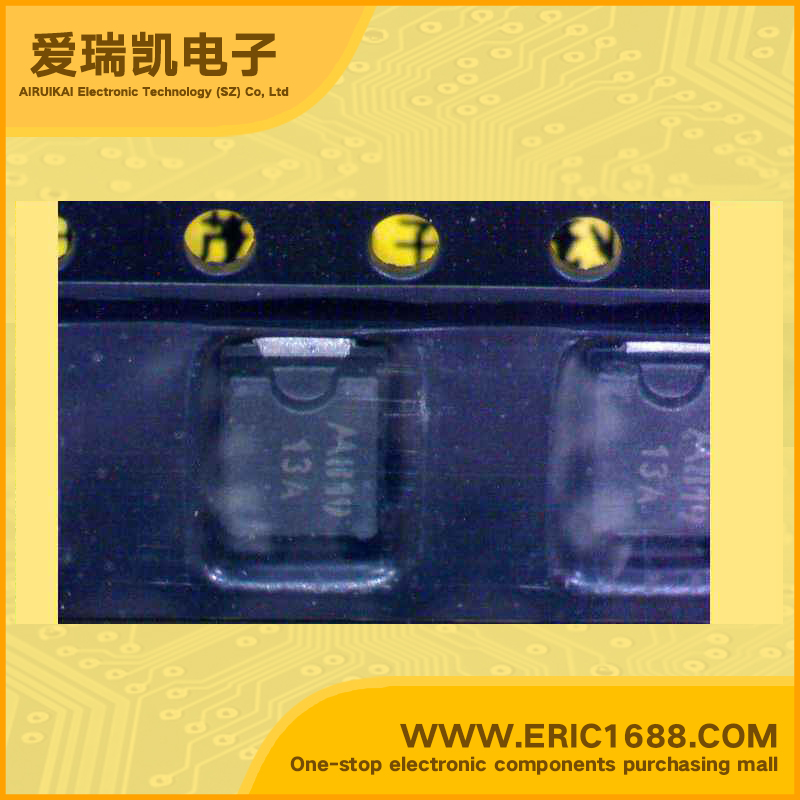

P6SMB13AT3 TVS/ESD 11.1V 33A 3W DO-214AA/SMB-13V marking 13A
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 11.1V |
| 反向击穿电压VBR Breakdown Voltage | 13V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 33A |
| 额定耗散功率Pd Power dissipation | 3W |
| Description & Applications | Specification Features • 600 Watt Peak Power Zener Transient Voltage Suppressors • Working Peak Reverse Voltage Range − 5.8 to 171 V • Standard Zener Breakdown Voltage Range − 6.8 to 200 V • Peak Power − 600 W @ 1 ms • ESD Rating of Class 3 (>16 KV) per Human Body Model • Maximum Clamp Voltage @ Peak Pulse Current • Low Leakage < 5 uA Above 10 V • UL 497B for Isolated Loop Circuit Protection • Response Time is Typically < 1 ns • Pb−Free Packages are Available |
| 描述与应用 | 规格特性 •600瓦峰值功率齐纳二极管瞬态电压抑制器 •工作峰值反向电压范围 - 5.8到171 V •标准齐纳击穿电压范围 - 6.8到200 V •峰值电力 - 600瓦@ 1毫秒 •3级（>16 KV）每人体模型ESD额定值 •最大钳位电压峰值脉冲电流 •低漏<5 UA大于10 V •UL497B用于隔离回路的电路保护 •响应时间通常小于1 ns •无铅包可用 |
