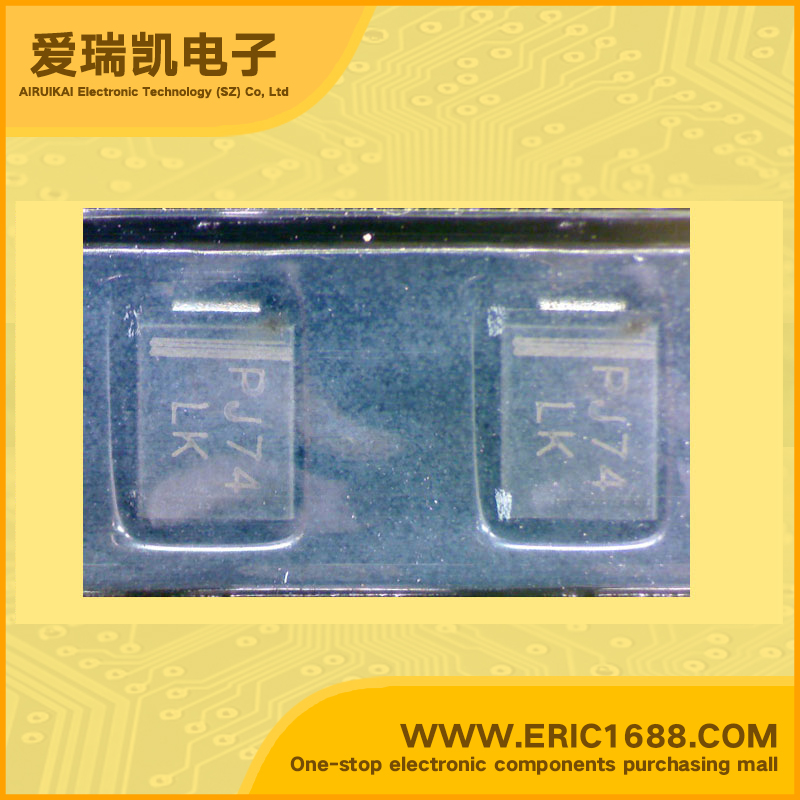

P6SMBJ14AT/R TVS/ESD 14V 25.8A DO-214AA/SMB-14V marking LK

Price (excluding freight):
Batches(PCS):
$0.108
≤99
$0.097
≤499
$0.081
≤999
$0.070
≤2999
$0.065
FCL

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
14V
反向击穿电压VBR
Breakdown Voltage
15.6V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
600W
峰值脉冲电流IPPm
Peak Forward Surge Current
25.8A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFEATURES • SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR POWER 600 Watts • For surface mounted applications in order to optimize board space. • Low profile package • Built-in strain relief • Glass passivated junction • Low inductance • Typical ID less than 1.0µA above 10V • Plastic package has Underwriters Laboratory Flammability Classification 94V-O • High temperature soldering : 260°C /10 seconds at terminals • In compliance with EU RoHS 2002/95/EC directives
描述与应用特性 •表面贴装型瞬态电压抑制器功率600瓦 •对于表面安装应用,以优化电路板空间。 •薄型包装 •内置应变救灾 •玻璃钝化结 •低电感 •典型的ID小于1.0μA高于10V •塑料包装已获UL可燃性分类94V-O •高温焊接:260°C /10秒钟终端 •符合欧盟RoHS指令2002/95/EC指令
