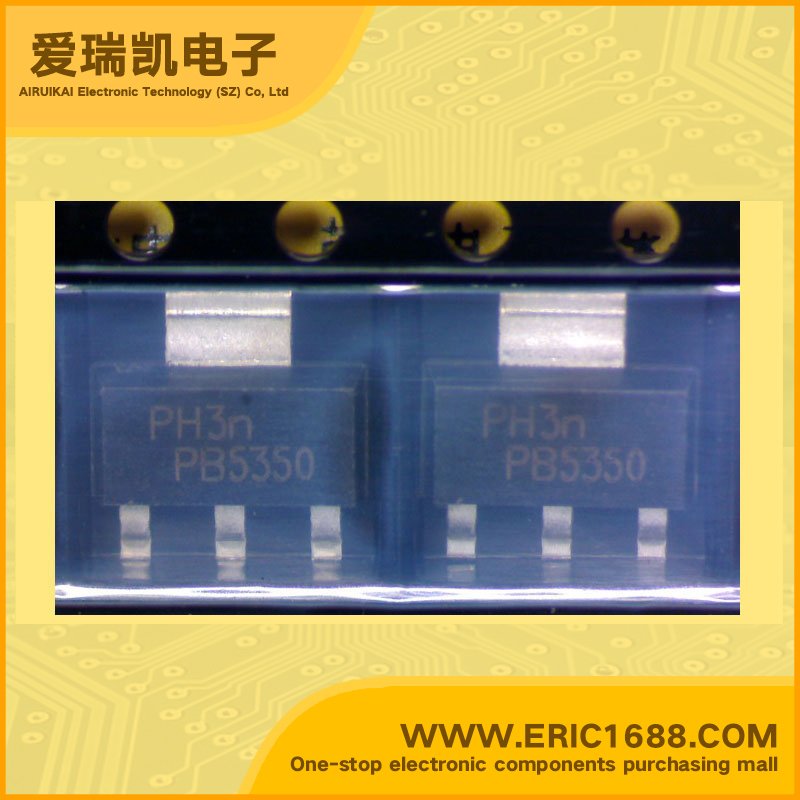

PBSS5350Z PNP transistors（BJT） -60V -3A 100MHz 200 -300mV/-0.3V SOT-223/TO-261AA marking PB5350 load driver/battery chargers/DC-DCconvertor
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流IC Collector Current(IC) | -3A |
| 截止频率fT Transtion Frequency(fT) | 100MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 200 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率Pc PoWer Dissipation | 1.35W |
| Description & Applications | 50 V low VCE(sat) PNP transistor FEATURES • SOT89 (SC-62) package • Low collector-emitter saturation voltage VCEsat • High collector current capability: IC and ICM • Higher efficiency leading to less heat generation • Reduced printed-circuit board requirements. • NPN complement: PBSS4350Z. APPLICATIONS • Power management – DC/DC converters – Supply line switching – Battery charger – LCD backlighting. • Peripheral drivers – Driver in low supply voltage applications (e.g. lamps and LEDs). – Inductive load driver (e.g. relays, buzzers and motors). |
| 描述与应用 | 50伏的低VCE（sat）的PNP晶体管 特点 •SOT89（SC-62）封装 •低集电极 - 发射极饱和电压VCE监测 •高集电极电流能力：IC和ICM •更高的效率，导致产生的热量少 •减少印刷电路板的要求。 •NPN补充：PBSS4350Z。 应用 •电源管理 - DC/ DC转换器 - 电源线开关 - 电池充电器 - LCD背光。 •外设驱动程序 - 驱动器，在低电源电压应用（例如灯具和LED）。 - 感性负载驱动器（如继电器，蜂鸣器和电机）。 |
