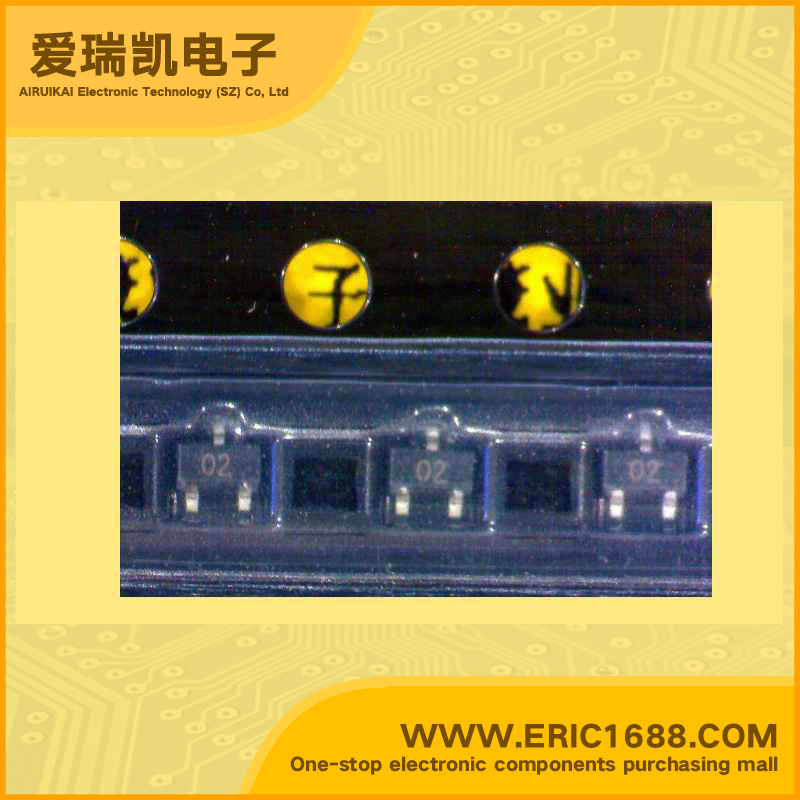

PDTC143EE NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 4.7k 4.7k gain30 SOT-523 marking 2
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 4.7KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 4.7KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 30 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 0.15W/150mW |
| Description & Applications | Features Built-in bias resistors Reduces component count Simplifies circuit design Reduces pick and place costs |
| 描述与应用 | 特性 内置偏置电阻 减少了元件数量 简化电路设计 减少取放成本 |
