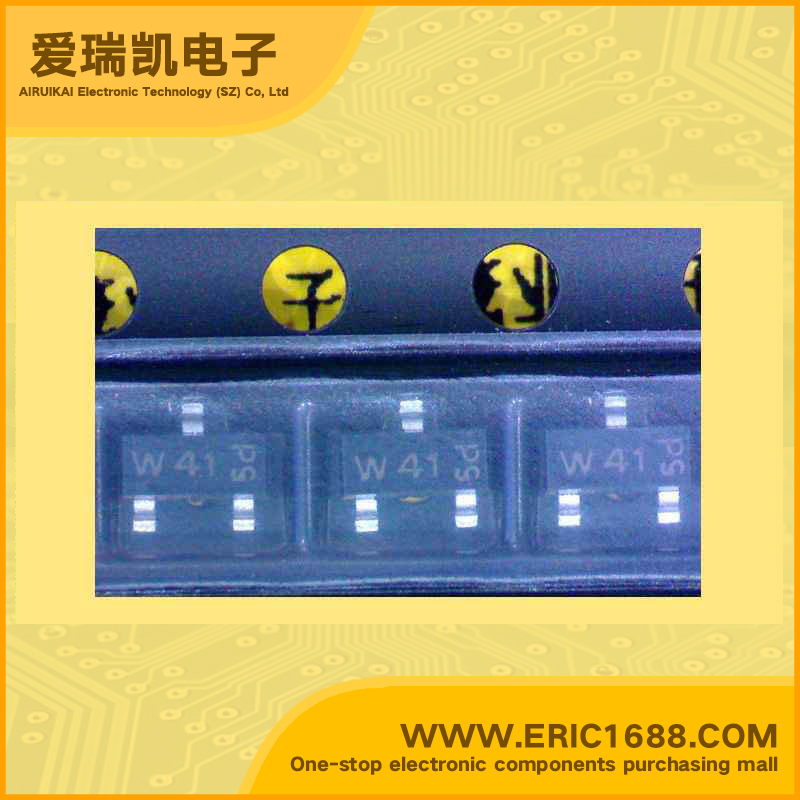

PDTC144TT NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 47k gain100 SOT-23/SC-59 marking W41

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V
集电极连续输出电流IC Collector Current(IC)100mA/0.1A
基极输入电阻R1 Input Resistance(R1)47KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE)100
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation0.25W /250mW
Description & ApplicationsFEATURES • Built-in bias resistor R1 (typ. 4.7 kΩ) • Simplification of circuit design • Reduces number of components and board space •100 mA output current capability
描述与应用特性 •内置偏置电阻R1(典型值4.7kΩ) •简化电路设计 •减少元件数量和电路板空间 •100 mA输出电流能力
