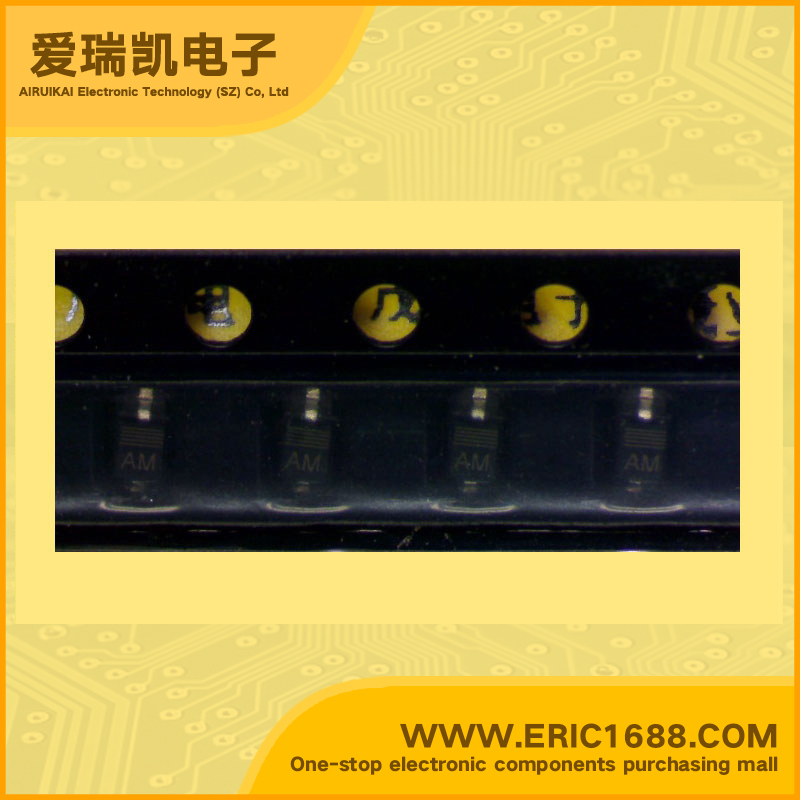

PESD1L1N TVS/ESD 15V 3A SOD323/SC-76/0805-15V marking AM
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 15V |
| 反向击穿电压VBR Breakdown Voltage | 18.9V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 160W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 3A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | FEATURES •ESD protection of one automotive LIN bus line •Asymmetrical diode configuration ensures an optimized ElectroMagnetic •Immunity (EMI) of a LIN Electronic Control Unit (ECU) •Due to the integrated diode structure only one very small SOD323 package is needed •Max. peak pulse power: PPP = 160 W at tp = 8/20 µs •Low clamping voltage: VCL = 40 V at IPP = 1 A •Ultra low leakage current: IRM < 1 nA •ESD protection of up to 23 kV IEC 61000-4-2, level 4 (ESD) IEC 61000-4-5 (surge); IPP = 3 A at tp = 8/20 µs |
| 描述与应用 | 特性 •汽车LIN总线ESD保护 •不对称二极管配置确保优化电磁 •抗干扰能力（EMI）的林电子控制单元（ECU） •由于集成二极管结构只有一个非常小SOD323封装需要 •最大峰值脉冲功率：PPP=160 W@tp= 8/20μs •低钳位电压：VCL在IPP=1= 40 VÅ •超低漏电流：IRM<1 nA •高达23千伏ESD保护IEC61000-4-2第4级（ESD） IEC61000-4-5（浪涌）; IPP= 3 A@tp= 8/20μs |
