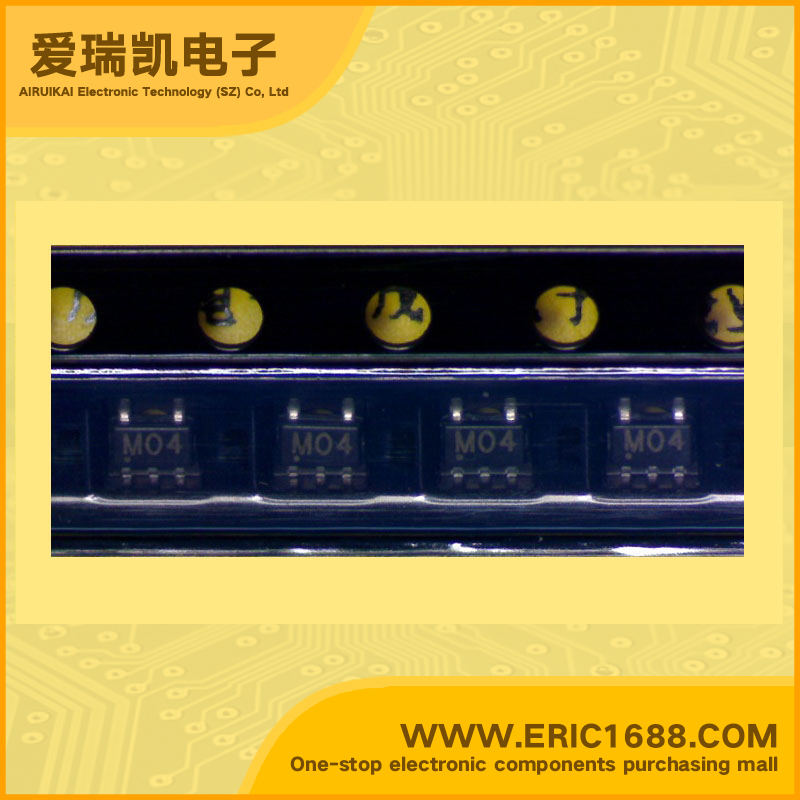

Integrated Circuit（IC） inverter PI74ST1G04CX SOT-353/SC70-5/SC-88 marking L04
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.8V~3.6V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -24mA，24mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.7V~2.3V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.7ns @ 3.0V~3.6V，50pF |
| Description & Applications | SOTiny Logic Inverter ；Features High-speed: tPD = 1.8ns typical Broad operating range: VCC = 1.8V -3.6V Power down high-impedance inputs/outputs High output drive: ±24mA at 3V VCC Package: 5-pin space saving SOT23 and SC70 |
| 描述与应用 | SOTiny逻辑 逆变器;特性 高速：TPD=1.8ns（典型值） 广泛的经营范围：VCC=1.8V-3.6V 掉电高阻抗输入/输出 高输出驱动器的±24mA电流在3V VCC 包装：5针节省空间的SOT23和SC70 |
