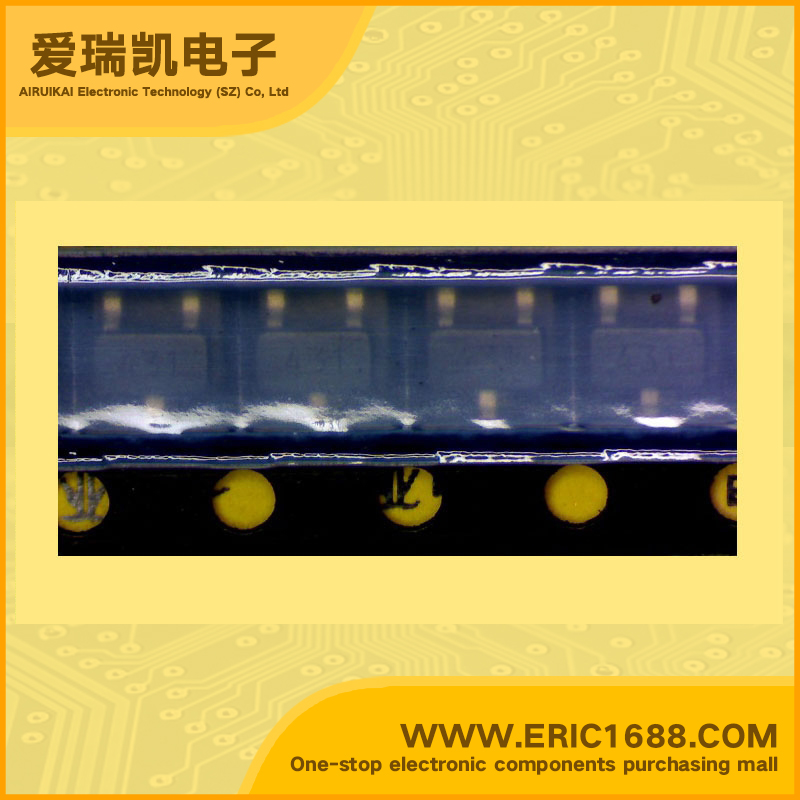

PJ431CX Voltage Reference Power Management IC 2.495V~36V SOT-23 marking 431 Programmable output voltage Low Output Noise Voltage
| 参考类型 Reference Type | |
| 输出电压Vo Voltage - Output | 2.495V~36V |
| 误差 Tolerance | ±1% |
| 温度系数 Temperature Coefficient | 50ppm/°C |
| 输入电压 Voltage - Input | 2.495V~36V |
| 阴极电流 Current - Cathode | 1mA |
| 输出电流IOUT Current - Output | 100mA/0.1A |
| Description & Applications | FEATURES • Programmable Precision References • Programmable Output Voltage to 36 Volts • Voltage Reference Tolerance: PJ431A : ±0.5%, Typ@25°C PJ431 : ±1%, Typ@25°C PJ431B : ±2%, Typ@25°C • Low Dynamic Output Impedance, 0.22 Ω Typical • Sink Current Capability of 1.0 to 100 mA • Equivalent Full-Range Temperature Coefficient of 50 ppm/ ℃Typical • Temperature Compensated for Operation over Full Rated Operating Temperature Range • Low Output Noise Voltage |
| 描述与应用 | 特点 •精密参考文献可编程 •可编程输出电压为36伏特 •参考电压公差： PJ431A：±0.5％，典型值@25°C PJ431：±1％，标准值@25°C PJ431B：±2％，典型值@25°C •低动态输出阻抗，0.22Ω典型 •灌电流能力为1.0至100毫安 •等效满量程温度系数50 PPM /℃典型 •在全额定工作温度范围的操作温度补偿 •低输出噪声电压 |
