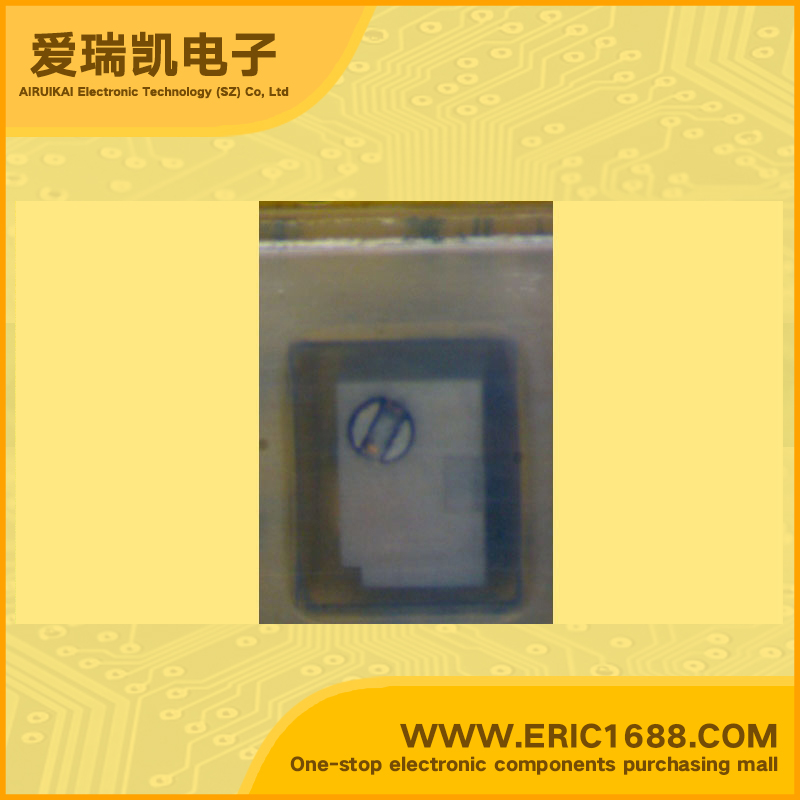

Trimmer Potentiometer POG5AN-1-203K-T00 20KΩ/Ohm 3224-20K
| 电阻值 Resistance |
20KΩ/Ohm |
| 额定功率 Power |
0.25w,1/4w |
| 容差 Tolerance |
±10% |
| 温度系数 Temperature Coefficient |
±100ppm/°C |
| 圈数 Number of Turns |
11 |
| 调节类型 Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型 Termination Style |
J引线 J Lead |
| Description & Applications | FEATURES 1. High resolution resulting from 11-turns design enables precise adjustment. 2. 5mm miniature size lead a high density PCB mounting. 3. Compatible with VPS reflow soldering method. 4. Compatible with ultrasonic cleaning. 5. Clutch mechanism prevents excessive wiper rotation. APPLICATIONS Measuring instruments, Sensors, CPUs, Industrial machines |
| 描述与应用 | 特点 1。 11匝设计产生的高分辨率能够精确调整。 2。 5mm的微型尺寸导致PCB高密度安装。 3。兼容VPS回流焊接方法等。 4。兼容超声波清洗。 5。离合器机构防止过多的雨刮器旋转。 应用 测量仪器，传感器，处理器，工业机器 |
