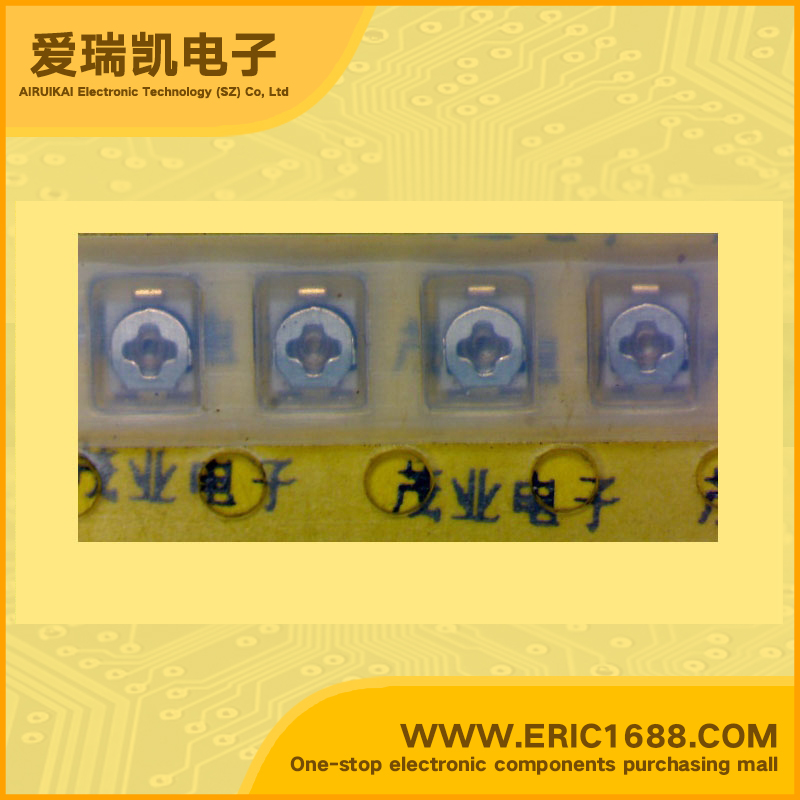

Carbon Chip Trimmer Potentiometer POZ2AN-1-303N-T00 30KΩ/Ohm 2X2-30K marking 33

Hot selling goods

Product description
电阻值
Resistance
30KΩ/Ohm
额定功率
Power
0.1W,1/10W
容差
Tolerance
±30%
温度系数
Temperature Coefficient
±500ppm/°C
圈数
Number of Turns
单圈 Single
调节类型
Adjustment Type
顶部调节 Top Adjustment
端子类型
Termination Style
J引线 J Lead
Description & Applications Carbon Chip Trimmer Potentiometer POZ2 Series Ultra thin 1.0mm max. height ! FEATURES 1. Ultra-small and thin external dimensions of 2.1(W) X 2.7(L) X 1.0max.(T)mm. 2. Au plated termination achieve a high density P.C.B. mounting. 3. Cross-shaped driver slot allows for in-process automatic adjustment and it provides superior adjustability. 4. Two pieces parts construction achieve low cost and excellent quality. 5. Special resin substrate allow high peak temperature for reflow soldering. APPLICATIONS Pick-up module, LCD, Cellular-phone, PHS, Pagers, DVC, Digital camera, Portable audio, etc
描述与应用 碳芯片微调电位器POZ2系列 超薄1.0mm最大。高度! 特点 1。超小而薄的外形尺寸为2.1(W)X2.7(L)X 1.0毫米(最大)。 2。镀金端子可实现PCB高密度安装。 3。十字形槽,可自动调整过程中的,它提供了优越的可调整性。 4。两件组成的结构实现低成本和优良的品质。 5。特殊树脂基板允许回流峰值温度高焊接。 应用 接送模块,液晶显示器,蜂窝电话,小灵通,寻呼机,DVC, 数码相机,便携式音频等
