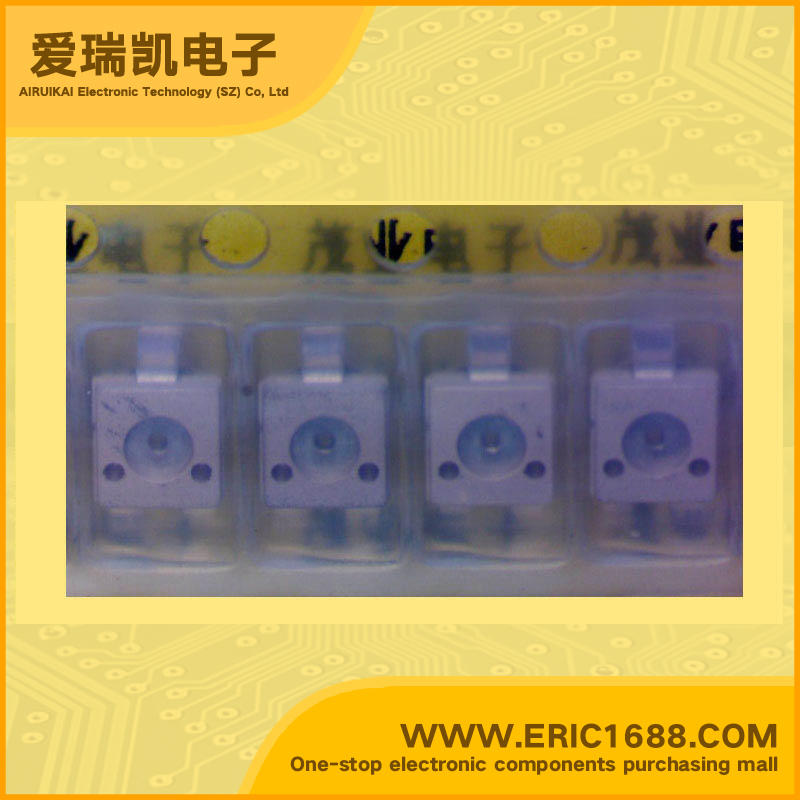

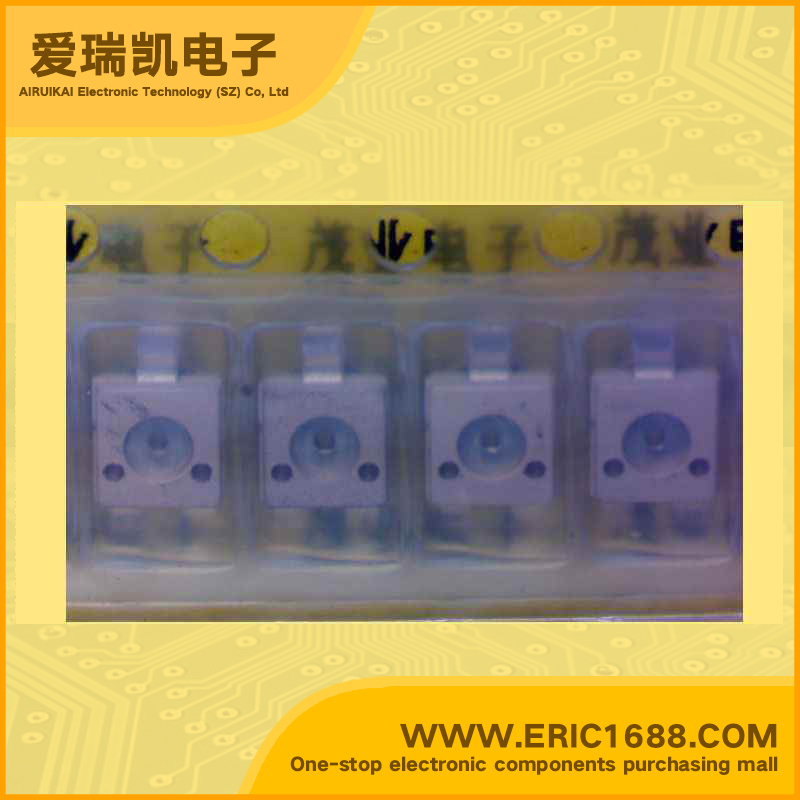

Carbon Chip Trimmer Potentiometer POZ3KN-1-104YJ-T04 100KΩ/Ohm 3X3-100K marking 15
| 电阻值 Resistance |
100KΩ/Ohm |
| 额定功率 Power |
0.1W,1/10W |
| 容差 Tolerance |
±30% |
| 温度系数 Temperature Coefficient |
±500ppm/°C |
| 圈数 Number of Turns |
单圈 Single |
| 调节类型 Adjustment Type |
底部调节 Bottom Adjustment |
| 端子类型 Termination Style |
J引线 J Lead |
| Description & Applications | Carbon Chip Trimmer Potentiometer POZ3 Series Utilizes new unique two piece construction to achieve low cost trimmer while maintaining excellent performance FEATURES 1. Excellent solderability characteristics are achieved via special plating techniques on each termination. 2. Specially designed substrate prevents wicking of flux onto the top of the part body. 3. Enlarged bottom termination enhance soldering strength while reducing the necessary land area required promoting high-density PCB mounting (POZ3AN Only) 4. Funnel shaped, adjustment slot allows for in-process automatic adjustment. 5. Flat surface is provided for smooth pick and place. (POZ3KN Only) 6. Heat-Resistant type is available. (POZ3AN-51) 7. The standard position of driver plate is adjusted at the center normally, but another position is also available. 8. This product meets Pb-free. APPLICATIONS Cordless telephones, CD-Players, CD-ROMs, Car stereos, TFT-LCD TV sets, Headphone stereos |
| 描述与应用 | 碳芯片微调电位器POZ3系列 利用新的独特的两片建设，实现低成本的微调，同时保持出色的性能 特点 1。优良的可焊性等特点，实现每个终端上通过特殊的电镀技术。 2。专门设计的基片可以防止助焊剂隆起到零件本体的顶部。 3。扩大底终止提高焊接强度，同时减少所需的土地面积推广高密度PCB安装（仅限POZ3AN） 4。漏斗形调整槽可为过程中的自动调节。 5。平坦的表面上顺利取放。 （仅限POZ3KN） 6。耐热类型是可用的。 （POZ3AN-51） 7。在通常的中心的驱动器板的标准位置进行调整，但也可用于另一个位置。 8。本产品符合无铅。 应用！ 无绳电话，CD播放机，CD-ROM光盘，汽车音响， TFT-LCD电视机，立体声耳机 |
