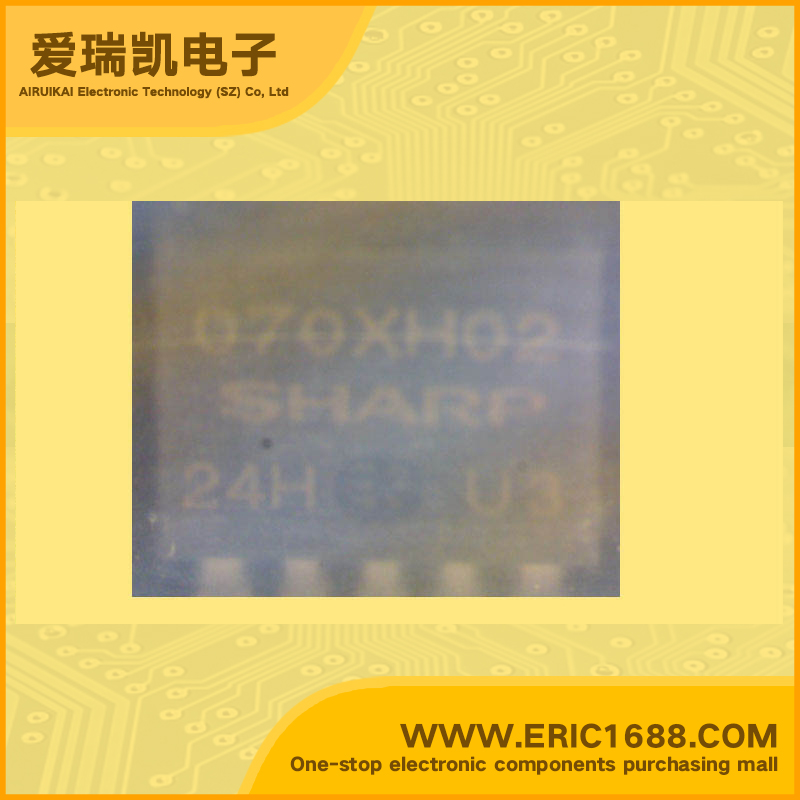

PQ070XH02ZPH LDO Voltage Regulator 7V 500mV/0.5V With Enable Pin TO-263-5 marking 070XH02 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 10V |
| 输出电压VOUT Voltage - Output | 7V |
| 输出电流Io Current - Output | 2A |
| 最大压降VDO Voltage - Dropout | 500mV/0.5V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 35W |
| Description & Applications | Low Voltage Operation Low Power-Loss Voltage Regulator；• Low voltage operation (Minimum operating voltage: 2.35V) 2.5V input → available 1.5 to 1.8V output • Large output current type (IO: 2A) •Low dissipation current(Quiescent current: MAX. 2mA •Output OFF-state dissipation current: MAX. 5µA) •Low power-loss • Built-in overcurrent and overheat protection functions • Personal computers and peripheral equipment • Power supplies for various digital electronic equipment such as DVD player or STB • Power supplies for automotive equipment such as car navigation system. |
| 描述与应用 | 低工作电压低功率损耗电压调节器;•低电压工作（最小工作电压：2.35V） →2.5V输入提供1.5至1.8V输出 •大输出电流型（IO：2A） •低功耗电流（静态电流：最大电流100mA •输出关断状态消耗电流：最大。 5μA） •低功率损耗？ •内置的过流和过热保护功能 •个人电脑及周边设备？ •电源各种数码电子设备等 DVD播放机或机顶盒 •电源为车载设备，如汽车 导航系统。 |
