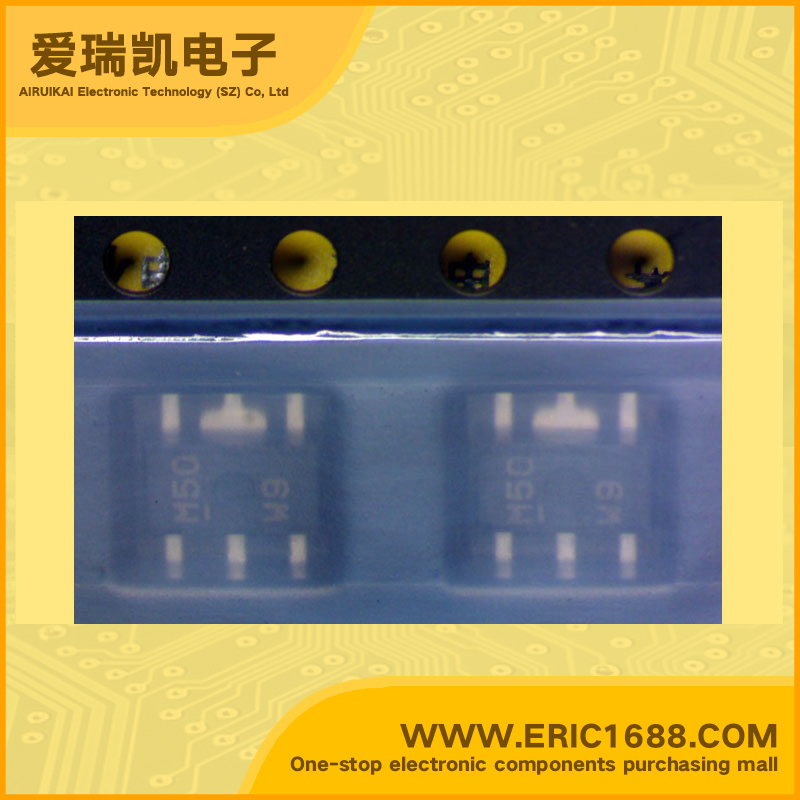

PQ1M505M2SPQ LDO Voltage Regulator 5V 400mV/0.4V With Enable Pin SOT89-5 marking M50 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
9V
输出电压VOUT
Voltage - Output
5V
输出电流Io
Current - Output
500mA/0.5A
最大压降VDO
Voltage - Dropout
400mV/0.4V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
900mW/0.9W
Description & ApplicationsCompact Surface Mount Type Low Power-Loss Voltage Regulators ;• Compact surface mount package (4.5×4.3×1.5mm) •Output current : MAX.500mA •Power dissipation : MAX.900mW (At mounting PCB shown in Fig.3) •Low power-loss (Dropout voltage : MAX. 0.7V at IO=500mA) •High ripple rejection(TYP.65dB) •Built-in ON/OFF control function •Built-in overcurrent, overheat protection functions •Use of ceramic capacitor is possible as output smooth capacitor •RoHS directive compliant •CD-ROM drives •DVD-ROM drives
描述与应用紧凑型表面贴装类型 低功率损耗电压调节器;•紧凑的表面贴装封装(4.5×4.3×1.5毫米) •输出电流:MAX.500mA •MAX.900mW功耗:    (在安装印刷电路板如图3所示) •低功率损耗    (漏失电压:0.7V IO=500毫安最大) •高纹波抑制(TYP.65dB) •内置的ON / OFF控制功能 •内置过流,过热保护功能 •使用陶瓷电容作为输出    平滑电容器 •符合RoHS指令 •CD-ROM驱动器 •DVD-ROM驱动器 •数码相机
