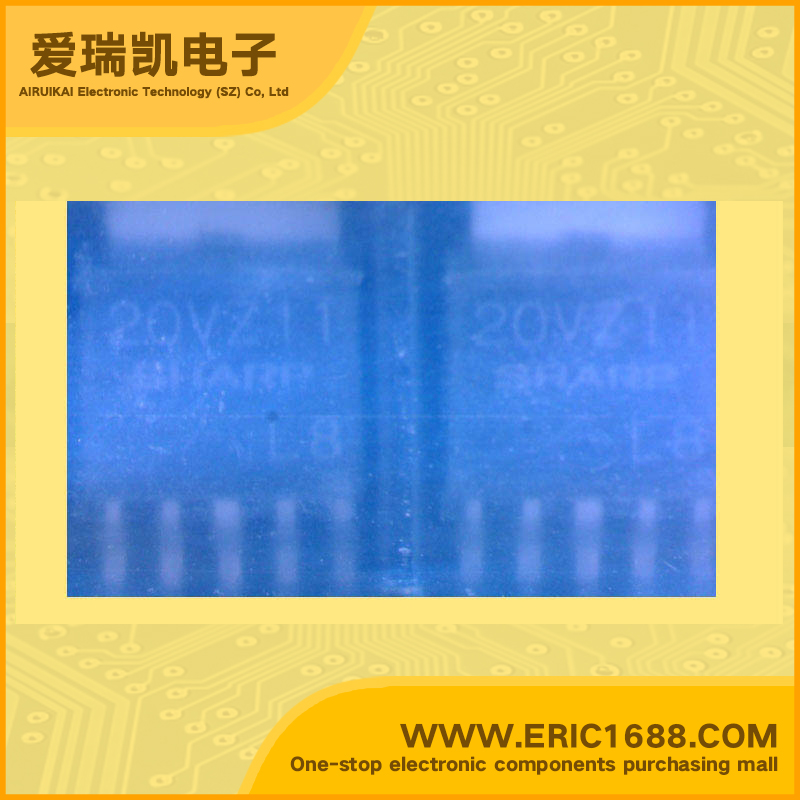

PQ20VZ1U LDO Voltage Regulator 1.5~20V 200mV/0.2V With Enable Pin TO-252-5 marking 20VZ11 Short-Circuit Protection Over-Temperature Protection

Price (excluding freight):
Batches(PCS):
$0.432
≤99
$0.389
≤499
$0.324
≤999
$0.281
≤2999
$0.259
FCL

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
24V
输出电压VOUT
Voltage - Output
1.5~20V
输出电流Io
Current - Output
1A
最大压降VDO
Voltage - Dropout
200mV/0.2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
8W
Description & ApplicationsVariable Output, Surface Mount Type Low Power-Loss Voltage Regulators ;•Low power-loss (Dropout voltage : 0.5V) •Compact surface mount package •Both the 0.5A output PQ20VZ51 and the 1A output •Variable output type (Output voltage variable range : 1.5V to20V) •Built-in ON-OFF control function •Low dissipation current at OFF-state (Iqs : MAX.5µA) •Tape packaged type is available.
描述与应用可变输出,表面贴装型低功率损耗电压调节器;•低功率损耗(漏失电压:0.5V) •紧凑的表面贴装封装 •两个0.5A输出PQ20VZ51的1A输出 •可变输出型(输出电压可调范围:1.5V to20V) •内置ON-OFF控制功能 •低功耗电流关断状态(IQS:MAX.5μA) •带包装的类型是可用的。
